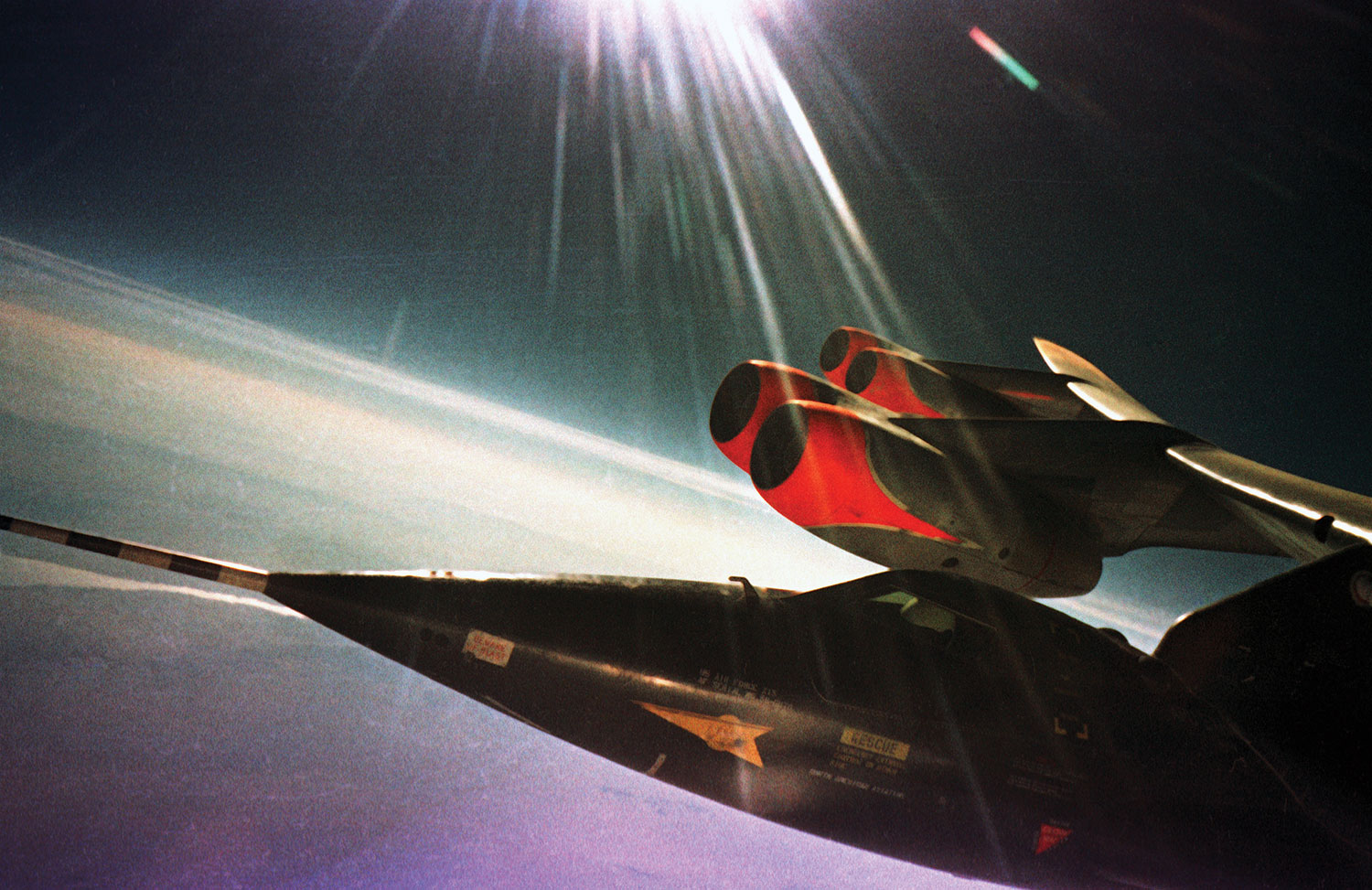

This view of an X-15 rocket-powered research airplane from the cockpit of its B-52 carrier aircraft is a perfect way to illustrate the juxtaposition of power and wing loading. The NASA B-52B “mothership” was powered by eight Pratt & Whitney J-57-19 turbojets, each capable of producing 12,000 pounds of thrust with water injection at takeoff. Its maximum gross takeoff weight was 420,000 pounds, but it likely never carried that much, ever. At that weight, its maximum power loading was 4.375 per pound of thrust. Meanwhile, the X-15’s single Thiokol XLR99-RM-2 liquid-fuel rocket engine generated 70,400 pounds of thrust at an altitude of 30 kilometers. Since the X-15 weighed 34,000 pounds, its power loading works out to slightly less than half a pound for each pound of thrust. If you have enough power, you can fly a brick (not that the X-15 was a brick).
Key Takeaways:
Wing loading (aircraft weight divided by wing surface area) and power loading (aircraft weight divided by engine power/thrust) are fundamental aerodynamic concepts crucial for understanding an aircraft's performance and handling characteristics.
These loadings directly impact takeoff/landing distances, climb performance, cruise airspeed, and stability; for instance, low wing loading allows slower flight and shorter field operations, while low power loading indicates higher acceleration and climb rates.
Wing and power loading are dynamic, constantly changing with factors like aircraft weight (e.g., fuel burn, load factor during maneuvers) and engine power output (e.g., altitude, engine failure), significantly altering an aircraft's performance in real-time.
A practical understanding of these concepts is essential for pilots to accurately predict aircraft capabilities and limitations, enabling safer and more competent flight decisions, particularly in challenging conditions or during critical phases of flight.
This view of an X-15 rocket-powered research airplane from the cockpit of its B-52 carrier aircraft is a perfect way to illustrate the juxtaposition of power and wing loading. The NASA B-52B “mothership” was powered by eight Pratt & Whitney J-57-19 turbojets, each capable of producing 12,000 pounds of thrust with water injection at takeoff. Its maximum gross takeoff weight was 420,000 pounds, but it likely never carried that much, ever. At that weight, its maximum power loading was 4.375 per pound of thrust. Meanwhile, the X-15’s single Thiokol XLR99-RM-2 liquid-fuel rocket engine generated 70,400 pounds of thrust at an altitude of 30 kilometers. Since the X-15 weighed 34,000 pounds, its power loading works out to slightly less than half a pound for each pound of thrust. If you have enough power, you can fly a brick (not that the X-15 was a brick).
Why can one airplane take off and land on short runways while another requires significantly longer takeoff and landing distances? Why does one airplane have better performance (rate of climb, airspeed) than another? Is the airplane you’re about to fly underpowered or overpowered? The answers to these and similar questions lie in understanding fundamental aerodynamic concepts like wing loading and power loading.
