Van’s RV-15 Prototype Progressing Through Development

The company said the high-wing aircraft designed for the backcountry market is on track to begin shipping this year.

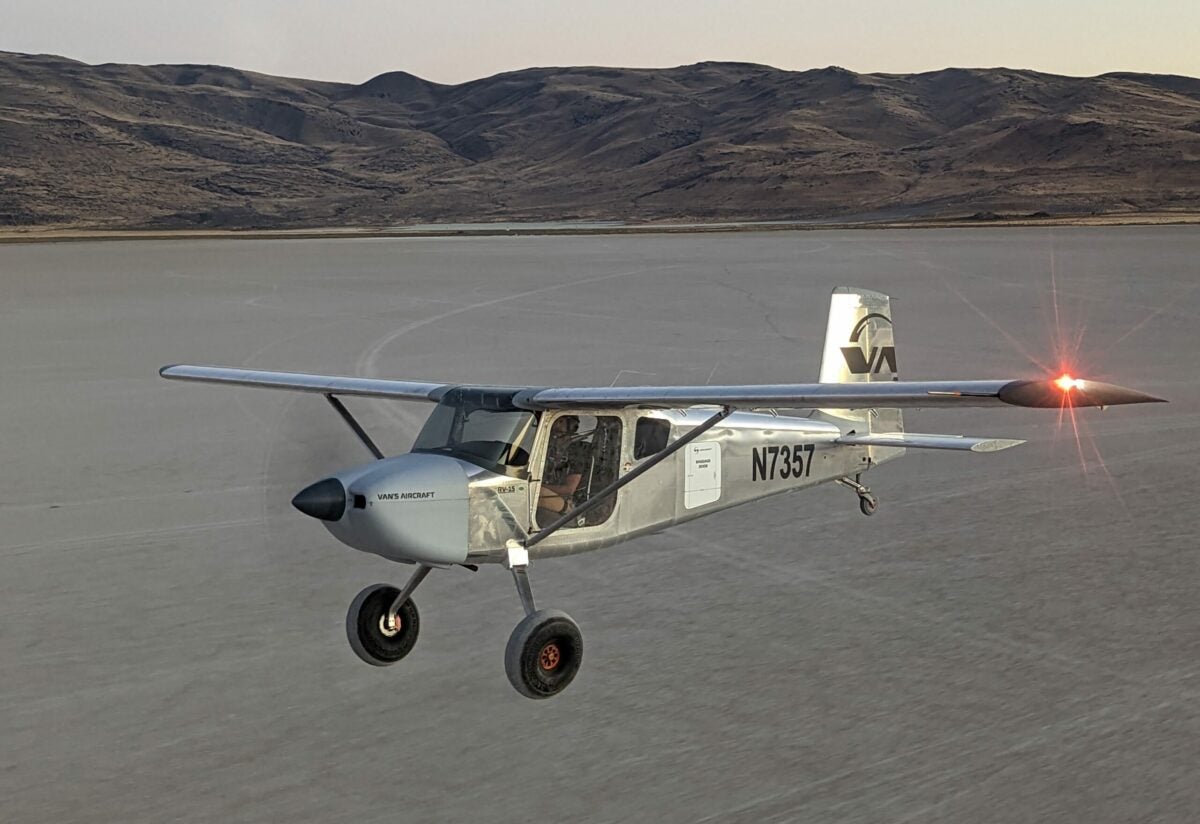

The Van’s RV-15 is progressing through development, on track for initial kit shipments in mid to late 2023. [Credit: Matt Beaubien]

The engineering prototype of the hotly-anticipated Van's Aircraft RV-15 is performing well, exhibiting good handling characteristics and delivering better-than-expected performance, the manufacturer said Friday.

During a webinar hosted by the Experimental Aircraft Association (EAA), Van’s Vice President Greg Hughes was accompanied by the company’s test pilot and multiple engineers to provide an overview of the airplane’s design, flight characteristics, and progress toward production. Following the main presentation, the group fielded questions from webinar attendees.

The company emphasized that the design is not final and that various aspects are still being changed as opportunities for improvement are discovered. Nevertheless, Van’s provided a detailed overview to attendees, complete with photos, diagrams, and video footage.

Overall Design

Van’s confirmed that the RV-15 will be a two-place backcountry airplane with a large baggage compartment behind occupants. During the design phase, engineers built a wooden cabin mockup to evaluate interior dimensions and discovered that the limited height of the aft cabin would be insufficient for adults. Additionally, the company’s research found that the vast majority of backcountry pilots fly almost exclusively alone or with only one passenger.

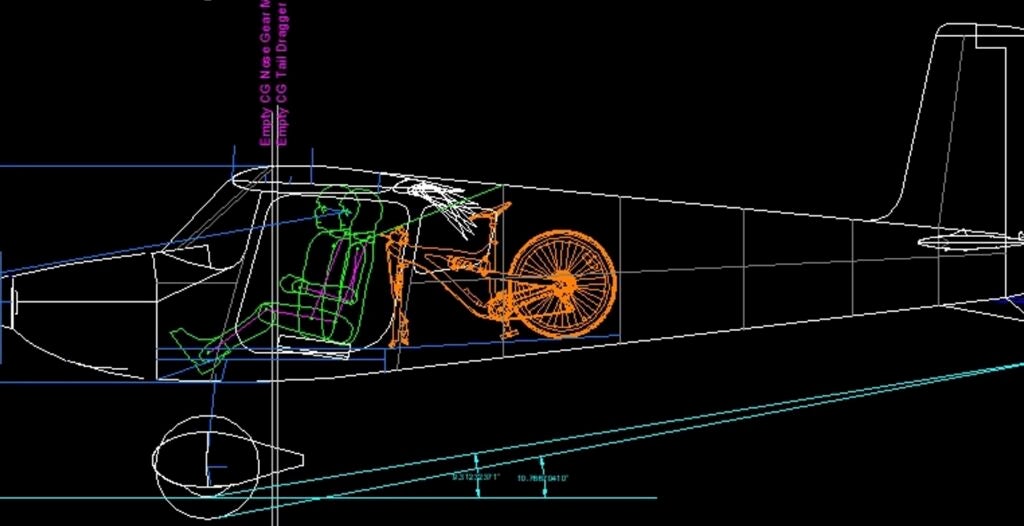

The ability to transport two full-sized adult bicycles was an early design goal. [Courtesy: Vans Aircraft]

The team also discovered that target customers value the ability to transport a large amount of gear in their aircraft. Accordingly, Van’s presented the RV-15 as a solution to not only access the backcountry but to bring along the gear and equipment most often utilized by backcountry enthusiasts. The targets of a minimum 900-pound useful load and 200-pound baggage capacity remain unchanged from initial figures.

While the airplane is being designed and optimized as a tailwheel, Van’s confirmed it will eventually be offered in tricycle-gear configuration. This will position the type as a potential solution for flight schools looking for a primary trainer. The airplane will also be compatible with floats and skis, with special attention paid to simplifying the transition between wheels and floats.

Van’s opted not to introduce aerobatic capability to the RV-15, reasoning that doing so would compromise the mission of the airplane. A ballistic parachute is planned as an option.

Wing, Tail

The RV-15 utilizes a modified version of the NACA 23000-series airfoil utilized in most other Van’s aircraft. This, engineers explained, enables the airplane to retain much of the same feel and handling qualities of existing models while optimizing it for an altogether different flight envelope. Because the RV-15 is designed to be a backcountry airplane with good STOL performance, special attention has been given to the low-speed characteristics, and the airfoil modifications are primarily aimed at softening the relatively abrupt stall break inherent in the standard airfoil.

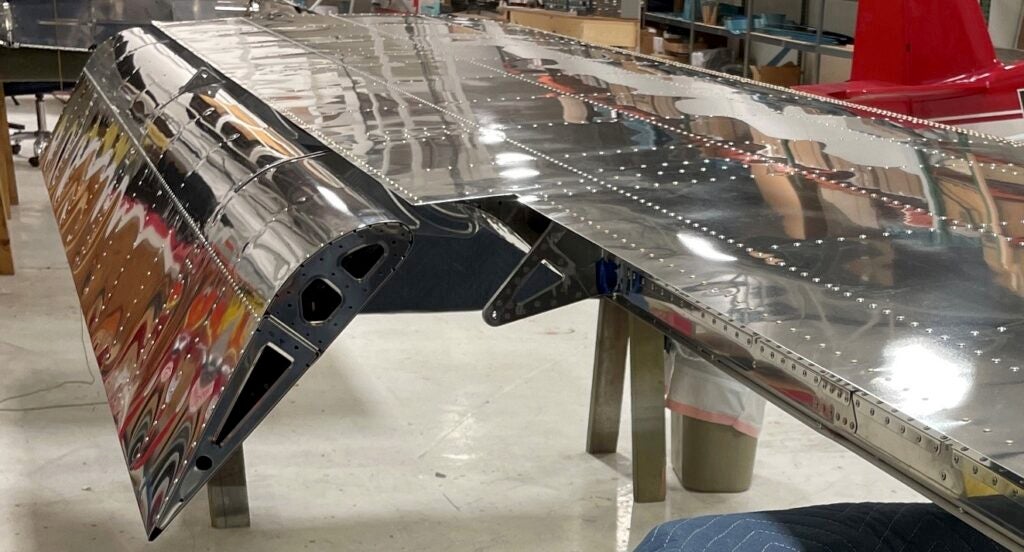

Large Fowler flaps enable admirable STOL performance. [Courtesy: Van’s Aircraft]

Much of the low-speed performance comes from the large-span Fowler flaps. While the maximum flap setting is listed as 50 degrees, this is being evaluated and may change. At 50 degrees, no issues have thus far been noted with regard to the flaps affecting pitch control, even in slips.

Part of the reason for this is the company’s choice to use a stabilator rather than an elevator. The all-moving horizontal surface provides greater pitch authority than an elevator-equipped horizontal stabilizer while also expanding the allowable center of gravity range.

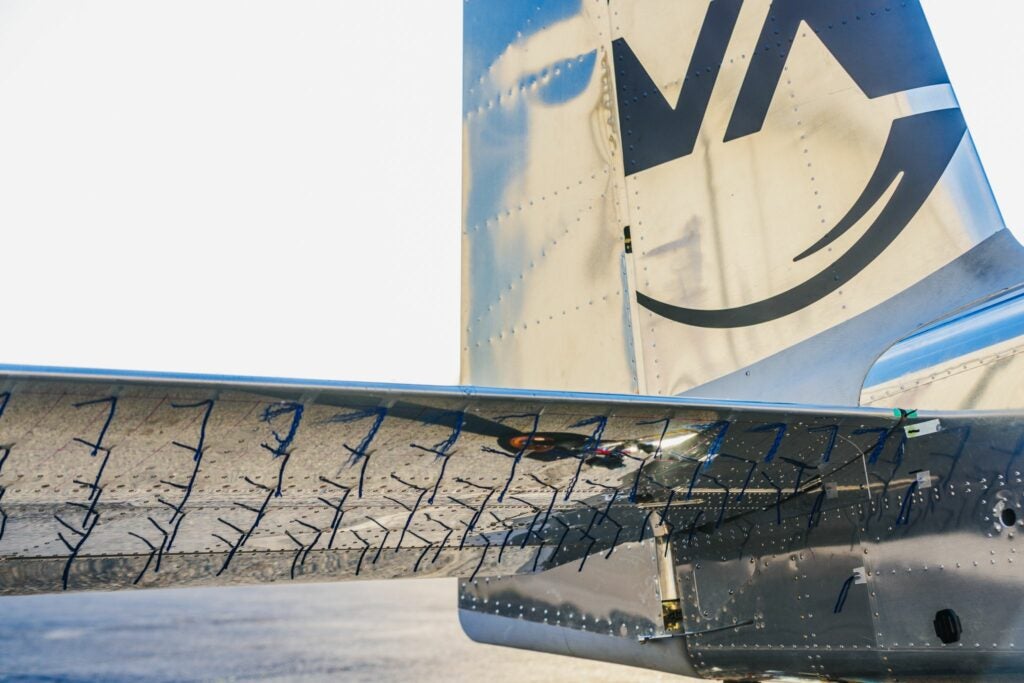

The RV-15’s stabilator, shown here with strands of yarn to help visualize airflow during testing. [Courtesy: Van’s Aircraft]

Van’s opted to use a strut-braced wing for the RV-15, explaining that a strutless cantilever wing would have been unacceptably heavy. Additionally, the wing struts provide a useful means of pushing and pulling the airplane around on the ground. This will be of particular value when moving the airplane over some of the more challenging surfaces a pilot might encounter off-airport, such as tall grass and mud.

Fuel capacity will increase from the current 50 gallons to 60 gallons for production kits, helping to maintain range with larger engines. To enable refueling without a ladder, fuel caps will move farther inboard, making them more easily accessible while standing on the wheel struts.


The RV-15 engineering prototype utilizes a 215 hp Lycoming IO-390-EXP119 and an 80-inch Hartzell Trailblazer propeller. The airplane was intentionally designed to be able to accept a variety of engines, from 180 to 220 hp. In addition to increasing the overall number of options for builders, Van’s pointed out that this flexibility enables a builder to install a used engine—such as the Lycoming O-360A1A—thus lowering the total aircraft price substantially.

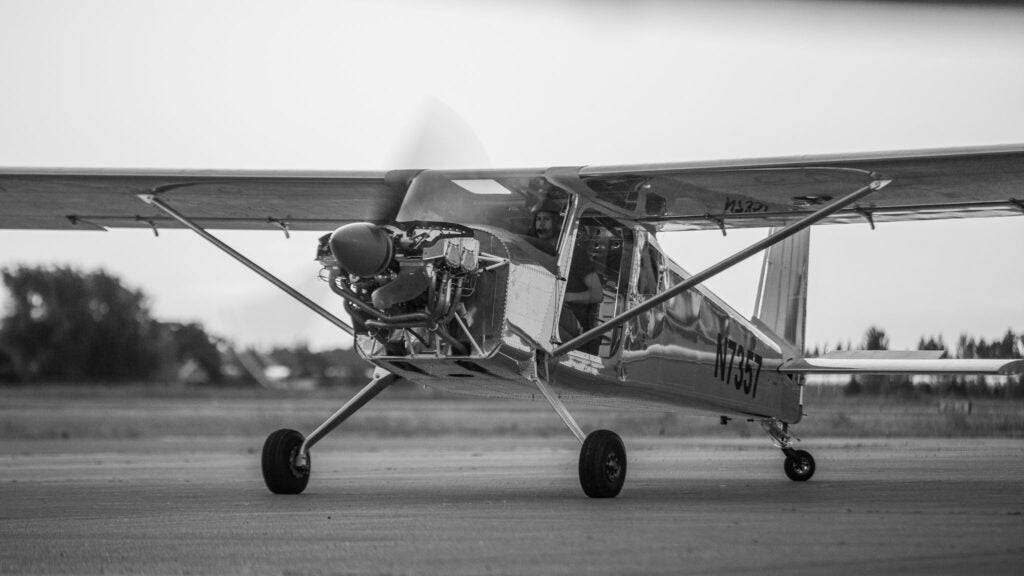

The RV-15 will utilize a variety of engine options. [Courtesy: Van’s Aircraft]

Landing Gear

The RV-15’s clean-sheet landing gear design is perhaps the most revolutionary aspect of the airplane. Equipped with air-sprung, oil-damped suspension all around, the gear provides good control on uneven surfaces while softening firm landings.

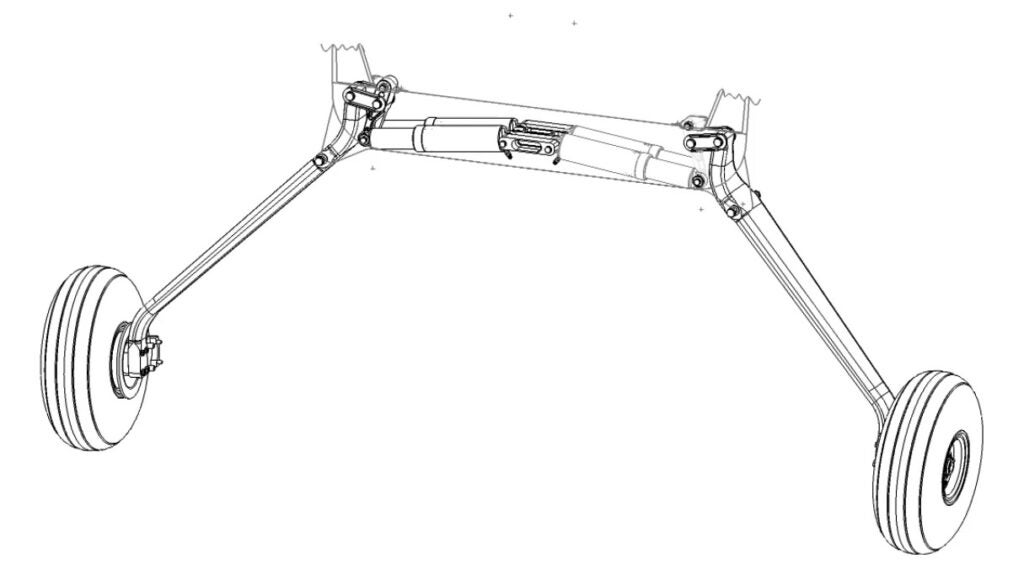

Two air-sprung, oil-damped shocks suspend each gear leg. [Courtesy: Van’s Aircraft]

With 7 inches of suspension travel at the main gear axles and 4.5 inches of travel at the tailwheel, the suspension should soak up even the most massive hits. Indeed, Van’s claims their design provides more cushion than 31-inch tundra tires with standard landing gear designs. Unlike big tires and spring-steel landing gear, the oil-damped shocks should provide a slow, controlled rebound with little tendency to bounce.

Anticipating regular trips to remote destinations, Van’s utilized two shocks for each main gear leg. If one should fail, the remaining shock will enable a return home for service.

The tailwheel is similarly advanced. Utilizing a four-bar linkage, the caster angle is adjustable and remains constant throughout the range of suspension travel. A video shown in the webinar shows the tailwheel resisting lateral flex during spirited ground maneuvering and extending in a slow, controlled manner after liftoff.

A robust linkage design is expected to minimize or eliminate tailwheel shimmy. [Courtesy: Van’s Aircraft]

The prototype’s gear design is being refined to be simpler, lighter, and less expensive to produce. Additionally, the main gear will be lengthened by one inch to provide additional propeller clearance. The additional clearance will enable floatplane pilots to leave 82-inch props in place when removing floats and installing wheels.


Van’s engineers focused on maximizing interior space for both occupants and cargo in the baggage area. Occupants are provided with side-by-side seating and floor-mounted control sticks that incorporate forward bends to ease ingress and egress. When paired with cutouts in production seats, these bends will also allow the seats to slide as far forward as possible, easing the loading and unloading of outsized cargo through the main doors.

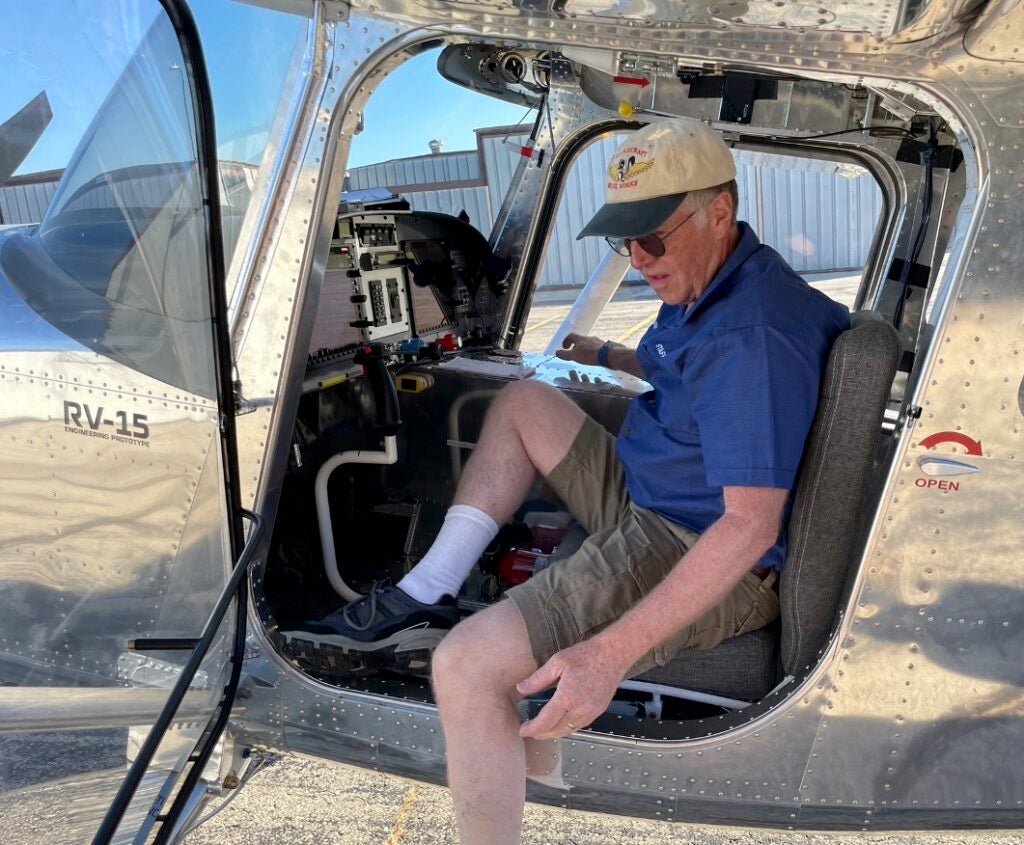

Side-by-side seating with control sticks isn’t an overly common configuration among high-wing aircraft, but Van’s engineers made efforts to ease entry and egress. [Courtesy: Van’s Aircraft]

A left-side aft baggage door will be standard. Again anticipating recreational trips to remote locations, engineers ensured the baggage door will swallow everything from generators to full-sized coolers to a pair of full-sized mountain bikes, provided their front wheels are removed. One engineer even confirmed the baggage door is dog compatible, reporting no issues with his dog while using it for boarding and deplaning.

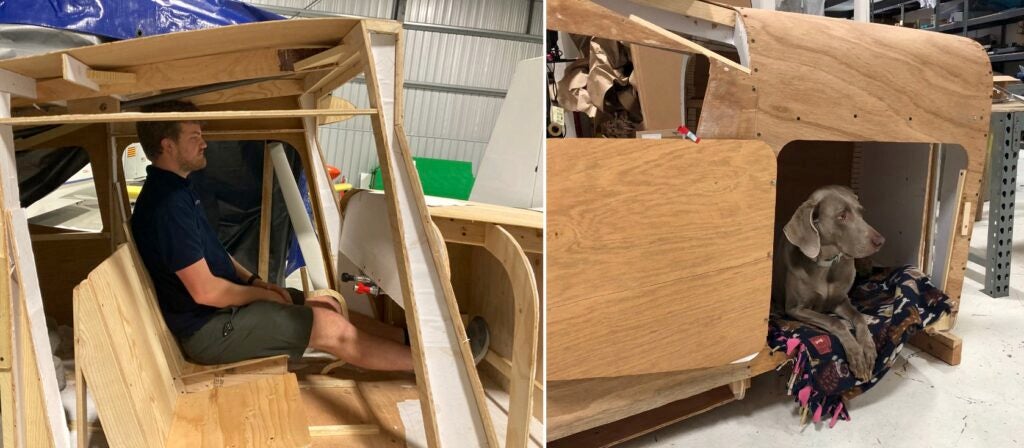

Engineers fabricated a wooden cabin mockup and solicited assistance from a variety of family members to evaluate cabin space and cargo capacity. [Courtesy: Van’s Aircraft]

Although the RV-15 engineering prototype already boasts more cabin width than a Cessna 180, the fuselage is being modified to further increase knee and leg room. Van’s 5-foot, 11-inch tall test pilot reports sufficient space and comfort, as well as good outward visibility. For production airplanes, the engine will be moved slightly downward to further improve forward visibility.

Because the wing will be moved slightly aft on production RV-15s, production versions will utilize a floor-mounted flap lever as opposed to the prototype’s overhead lever. Concerned about having to lean down and forward to reach the lever as in Cessna 170s and 180s, Van’s ensured the RV-15’s seats were positioned close enough to the cabin floor to keep the flap lever within easy reach.


Van’s R&D engineer and test pilot Axel Alvarez provided a detailed account of the prototype’s performance thus far. Under no-wind conditions at a sea-level density altitude with 30 gallons of fuel and 110 pounds of ballast aboard, he reported a takeoff ground roll of 225 to 230 feet, taking approximately 5 seconds to lift off. The subsequent climb returned a climb rate of 2,000 to 2,200 fpm with an indicated deck angle of 20 to 21 degrees while maintaining 65 knots.

Takeoff and landing distances have reportedly exceeded expectations. [Credit: Matt Beaubien]

Van’s didn’t mention cruise speeds, but Alvarez reported a 150-foot landing roll on asphalt when utilizing a three-point landing technique and small six-inch tires. Perhaps most impressive, he reported that even when “smoking” the tires under heavy braking, there was “absolutely no nose-over tendency with the stick all the way aft.”

Delivery and Pricing

At EAA Airventure 2022, Van’s reported that the RV-15 kit would be available in mid to late 2023. The company confirmed they are still on track to meet that timeline and said the order book would be opened when they have more confidence regarding kit delivery schedules. The company expects wing kits to be the first kits to become available, followed by tail, fuselage, and others. Van’s does not expect the RV-15 program to impact the manufacturing or delivery of current aircraft kits.

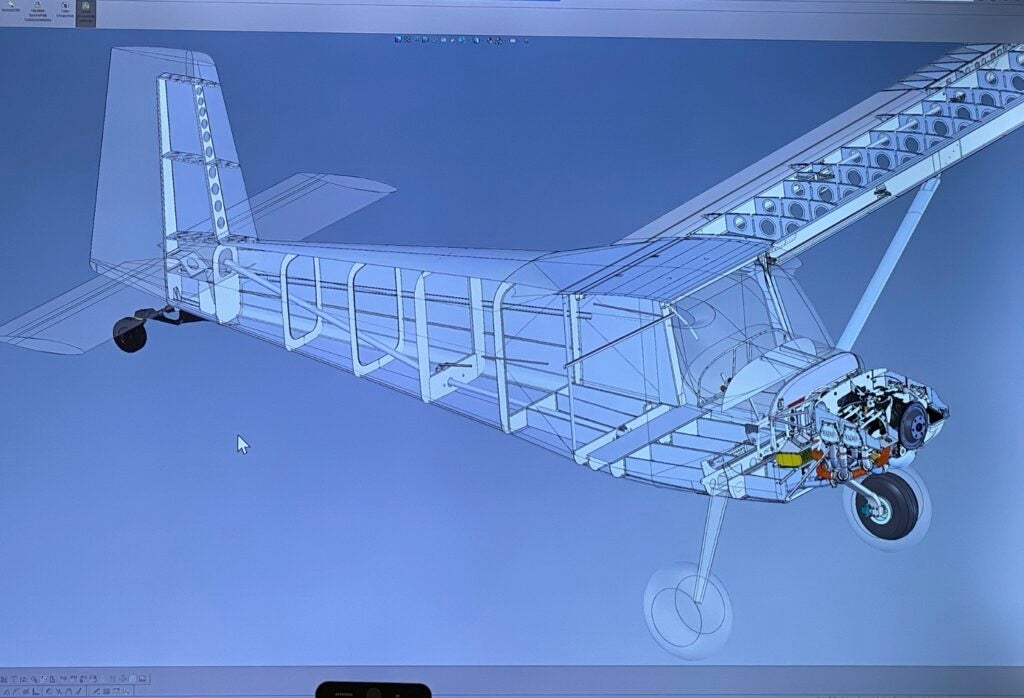

Delivery dates for the first RV-15 kits are still expected to occur on schedule as the design is refined. [Courtesy: Van’s Aircraft]

Pricing for the RV-15 has not yet been determined. But when asked for an estimate, Van’s said the pricing will be below that of the RV-10, which ranges from $61,350 for a standard kit and $80,850 for a QuickBuild kit. Addressing the question of whether the RV-15 might cost as much as an RV-14 kit which ranges from $43,200 to $64,700, the company responded, “Possibly.”

Jason McDowell is a private pilot and Cessna 170 owner based in Madison, Wisconsin. He enjoys researching obscure aviation history and serves as a judge for the National Intercollegiate Flying Association. He can be found on Instagram as @cessnateur.
