That Time When WACO Designers Went a Little Crazy

The WACO Aristocraft was a single-engine, four-place aircraft targeting the scores of pilots returning from World War II.

Jason McDowell

Tuesday, September 03, 2024 at 11:02 AM ET

Verified

Edited By:

Kimberly Johnson

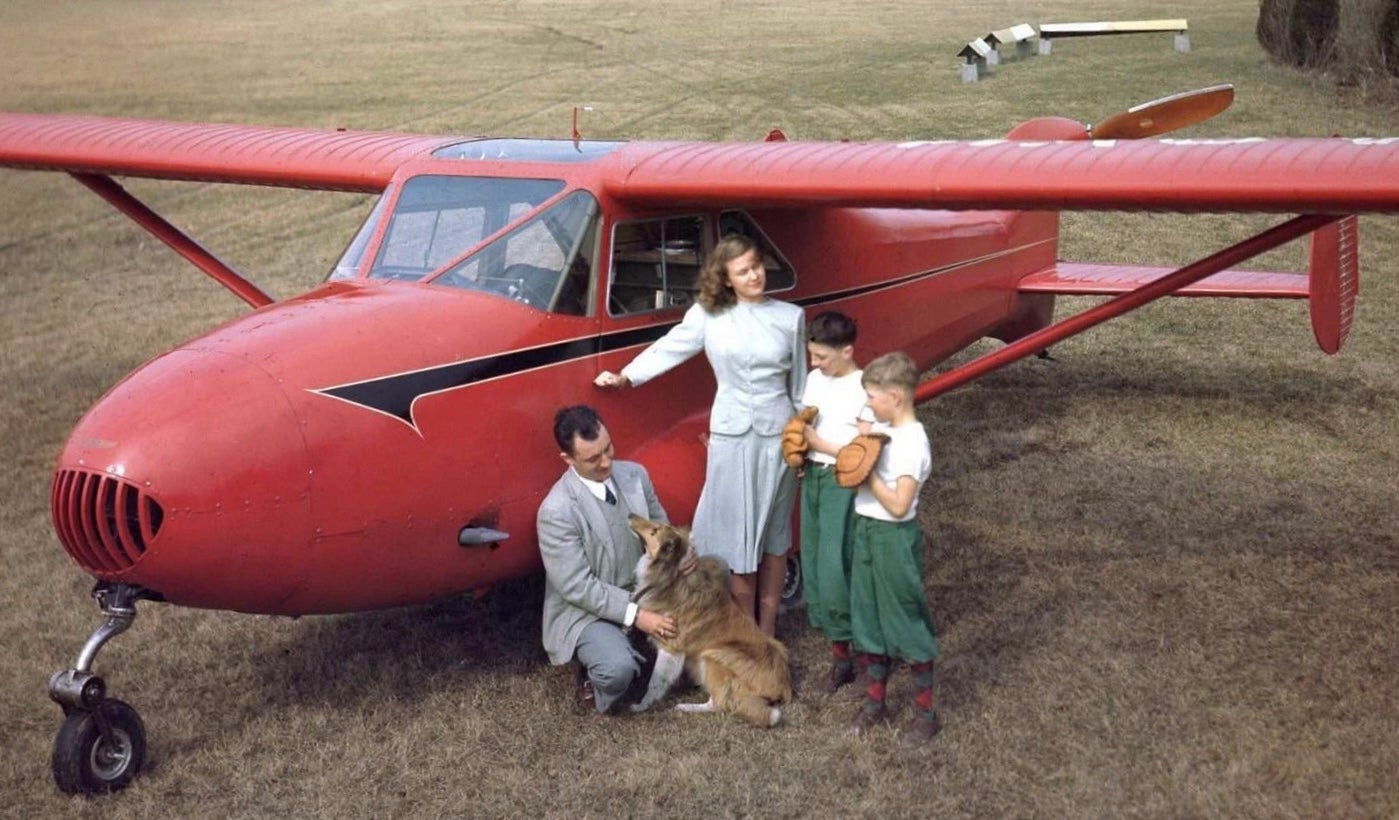

A WACO marketing photo presents the unique Aristocraft as a personal airplane for the family. Note the large, fully reversible wooden pusher propeller. [Courtesy: WACO]

Key Takeaways:

WACO, traditionally known for biplanes, attempted to enter the post-WWII personal aircraft market in 1947 with the "Aristocraft," a four-place plane featuring a front-mounted engine driving a rear pusher propeller via a long driveshaft.

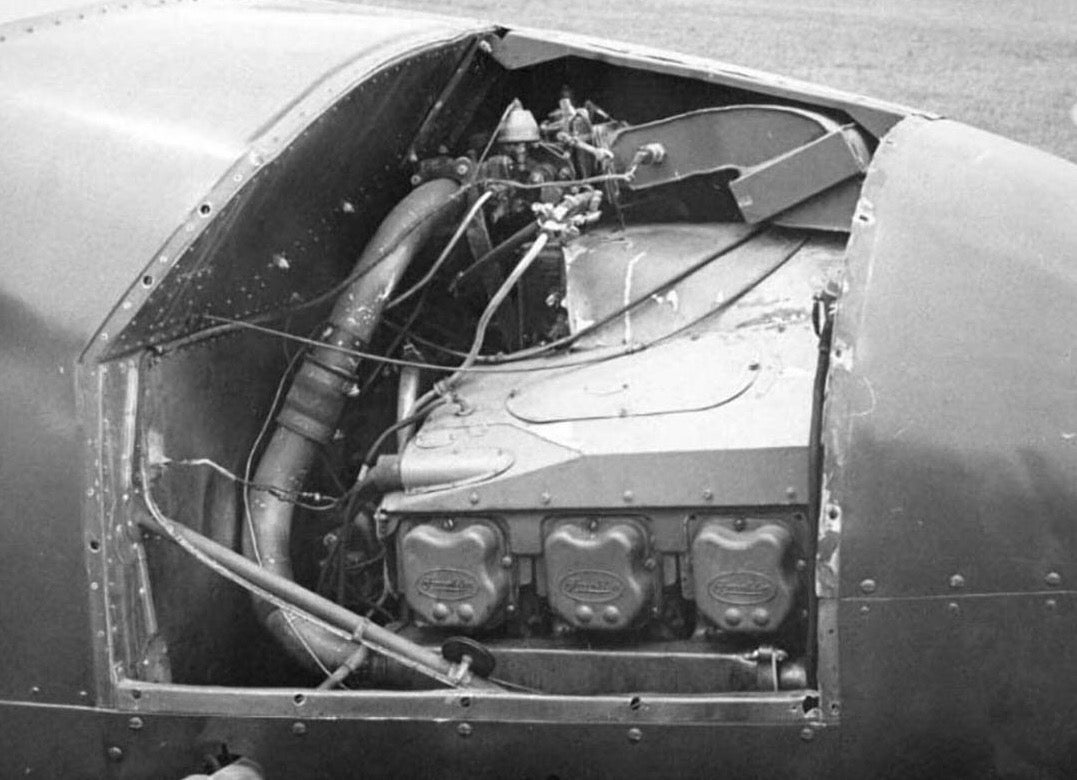

The Aristocraft's unique design promised benefits like reduced drag and cabin noise but also introduced significant weight and complexity, including a novel engine cooling system and partially retractable tricycle landing gear.

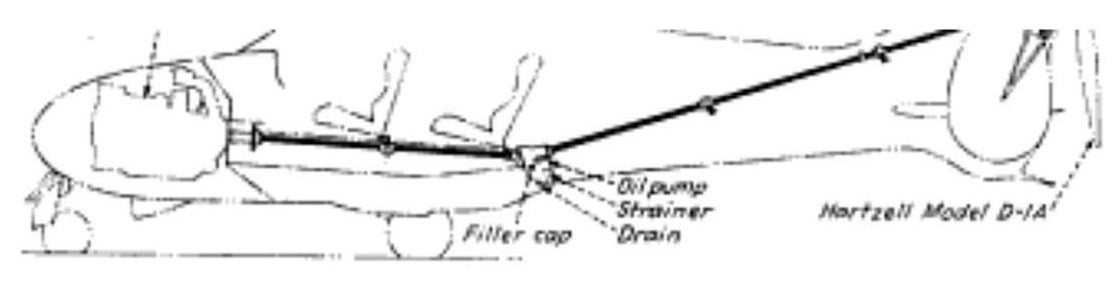

Despite securing approximately 300 orders, the Aristocraft never reached production, likely due to insurmountable engineering challenges, particularly managing vibration from its innovative long driveshaft, leading to the program's cancellation.

See a mistake? Contact us.

To most people, the name WACO is synonymous with elegant biplanes from the golden era of aviation. While the company did stray from convention and build a single monoplane in 1940 to compete for a military contract, the traditional WACO is a classic, open-cockpit biplane that is happiest cruising low and slow above fragrant hayfields on calm summer evenings.

In 1947, however, WACO’s designers and engineers went a little crazy.
