Reenacting the First Airplane Flight via Simulator

Travel to Kitty Hawk for a Microsoft Flight Simulator reenactment of the historic first flight of the 1903 Wright Flyer.

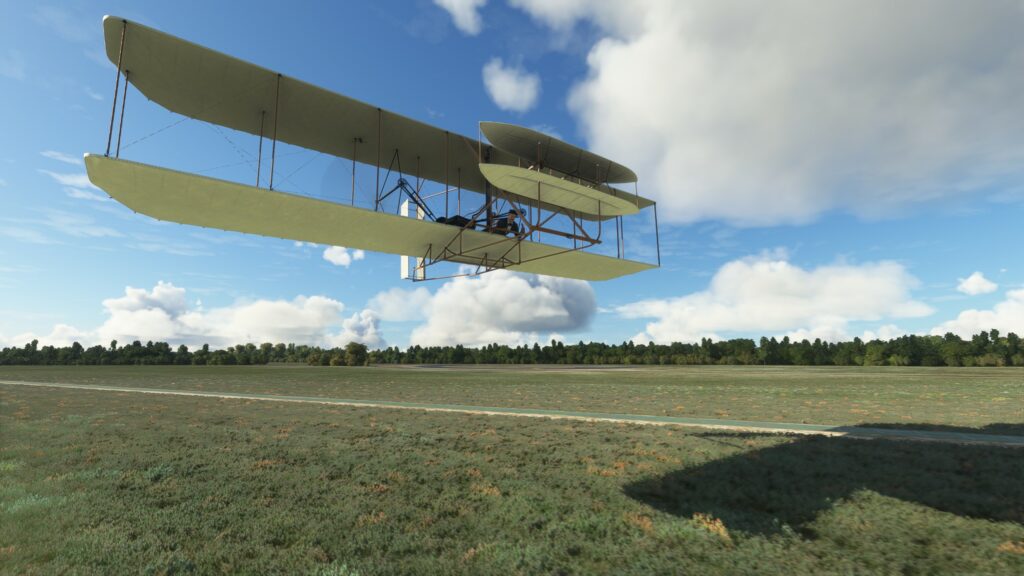

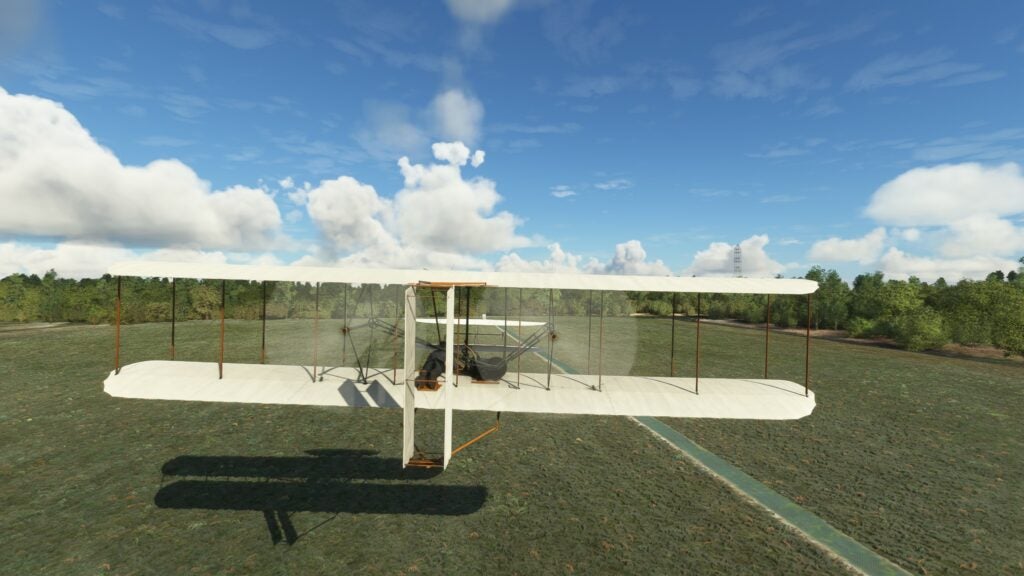

The 1903 Wright Flyer as rendered by Microsoft Flight Simulator 2020. [Courtesy: Patrick Chovanec]

Today in Microsoft Flight Simulator 2020, I’m at Kitty Hawk, North Carolina, to reenact the first flight of the world’s very first airplane, the 1903 Wright Flyer.

At first glance, the boxy Wright Flyer doesn’t look much like our modern notion of an airplane. However, it possesses all the key features that still define an airplane to this day.

As every pilot knows, there are four forces that account for how and why an airplane is able to fly: lift, weight, thrust, and drag. These four forces were first outlined 100 years before the Wright brothers flew by the Englishman Sir George Cayley, who also invented the seat belt, the wire-spoked bicycle wheel, and the tank tread.

So the basic thesis of flight was reasonably well understood by the time the two young Wrights, Wilbur and Orville, stepped onto the stage. There were several people already hard at work on the problem of controlled flight, including the well-known and well-funded head of the Smithsonian Institution, Samuel Langley. But success continued to elude them. The brothers, in contrast, were the obscure sons of a Protestant bishop in Ohio who had started a workshop catering to the latest high-tech fad, bicycles—kind of like Steve Jobs and Steve Wozniak tinkering in their garage on a homemade Apple II computer.

[Courtesy: Patrick Chovanec]

The first of Cayley’s four forces, weight, seems fairly self-evident: It’s the force anyone needs to overcome to fly. To counter weight, you need lift. One solution is to fill a balloon full of gasses that are lighter than air and therefore want to rise. As early as 1783, the French had learned how to fly in balloons. Giant bags full of gas have a number of drawbacks, though, and for millennia people had observed that birds are able to fly by using wings—often by flapping them, but just as often by simply gliding on them.

In the 1890s, the German aviator Otto Lilienthal experimented extensively with gliders, based on his close study of birds. Lilienthal carefully noted his successes and failures until breaking his spine and dying in a crash in 1896. As amateurs, the Wright brothers constructed their own large-scale kites and compared the lift they were able to achieve with Lilienthal’s results. The results were not what they hoped, so back home in Ohio they cobbled together a primitive wind tunnel that they used to systematically conduct tests on wings of different shapes.

[Courtesy: Patrick Chovanec]

The way a wing works is by creating a difference in pressure as the air flows across it. The differential between the lower pressure above and higher pressure below generates a force (lift) that pushes the wing up. Both the shape and position of the wing determine the amount of lift created. What the Wright brothers discovered was that many of Lilienthal’s calculations, which were guiding everyone else’s efforts, were wrong. Their experiments led them to a better wing design that produced more lift relative to its weight.

OK, that’s one problem solved. But to generate lift, air needs to be flowing across the wing. Wind is one way to achieve this, which is why the Wrights picked the wind-swept sand dunes of North Carolina’s coast to test their designs. Another way to achieve forward motion is by using the potential energy induced by gravity. Lilienthal jumped off a tall hill,  translating downward pull into forward motion, like sliding down a long slope of air.

Ultimately, though, for sustained flight you need a source of propulsion to generate consistent thrust. People realized this from Cayley’s time, but the problem was that steam engines were too heavy and inefficient to produce enough thrust relative to their additional weight.

[Courtesy: Patrick Chovanec]

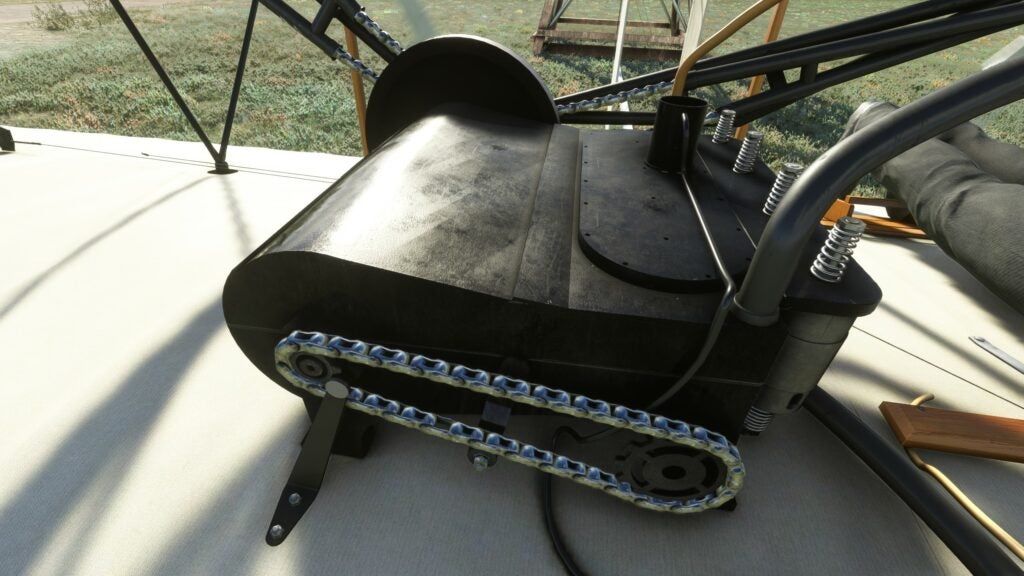

Fortunately for the Wright brothers, the internal combustion engines that were just being developed for cars and motorcycles combined lighter weight with greater power—perhaps enough to power an airplane. Once they felt confident with their glider design, the Wrights turned to a local engineer in Ohio to build them a custom, lightweight engine, with four in-line pistons, capable of producing 12 hp.

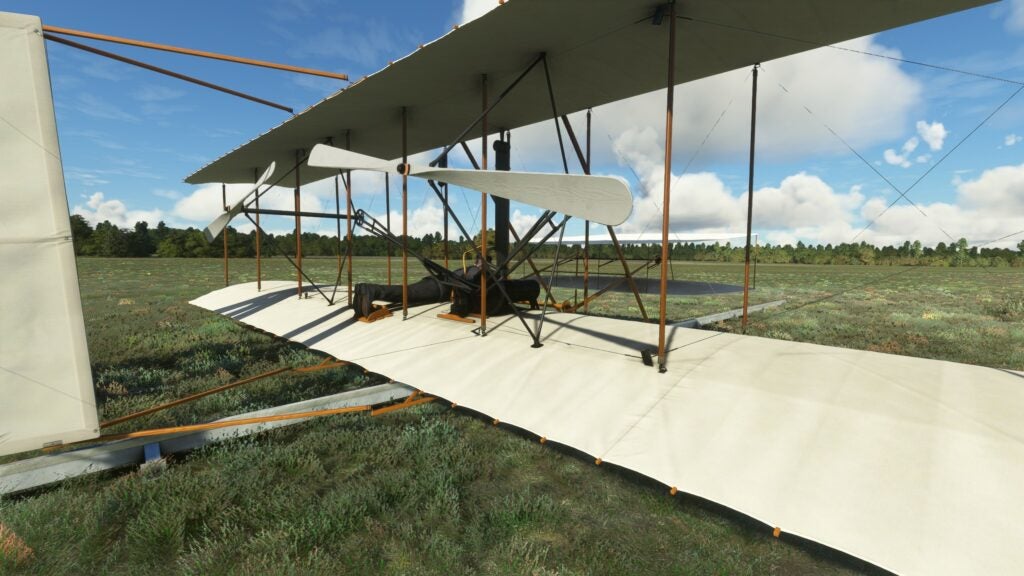

This engine was linked, via bicycle chains, to two 8 ½-foot-long propellers. A propeller is basically a rotating wing that produces thrust in the same way a wing creates lift. The Wrights spent a lot of time experimenting in their wind tunnel to get the shape of the propellers just right.

[Courtesy: Patrick Chovanec]

The thrust provided by these propellers is offset by drag. All the wooden wires and struts holding the Wright Flyer together, along with the friction of its canvas surfaces, create a lot of air resistance—and parasite drag—that will slow the aircraft’s movement through the air.

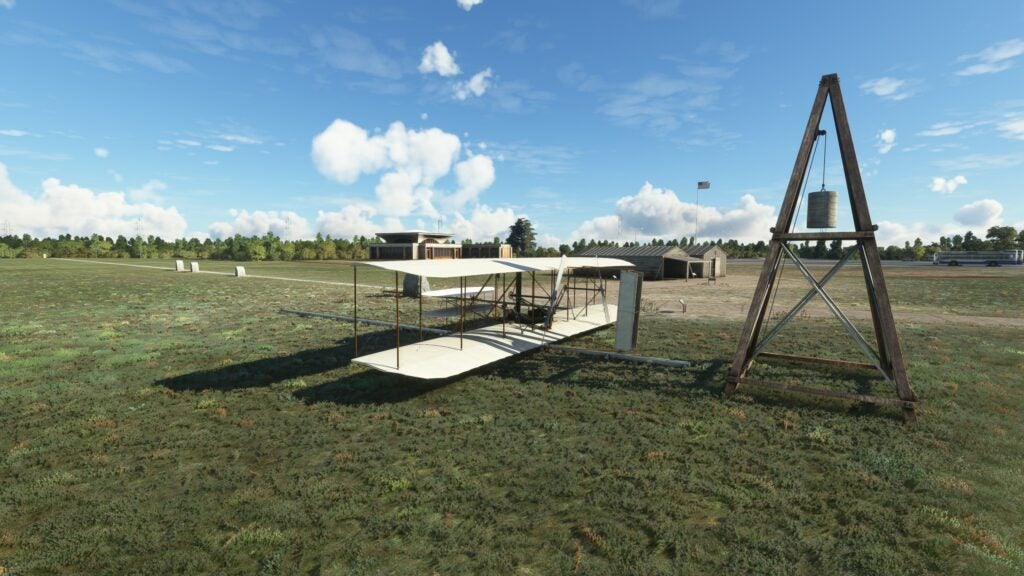

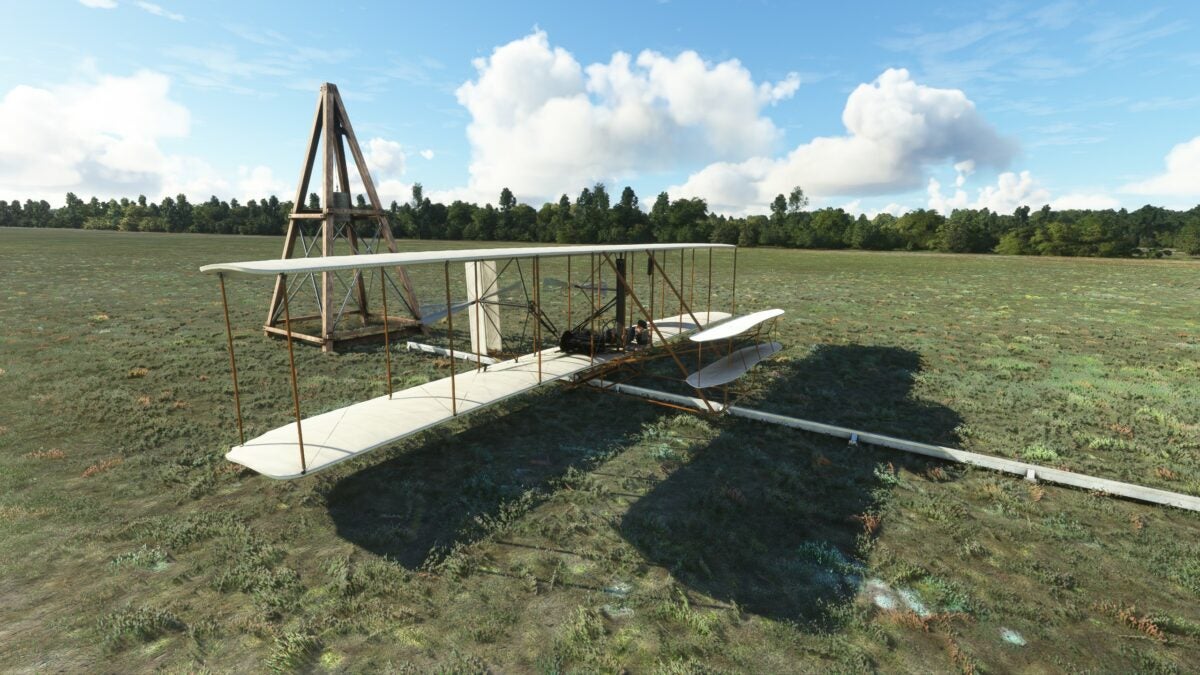

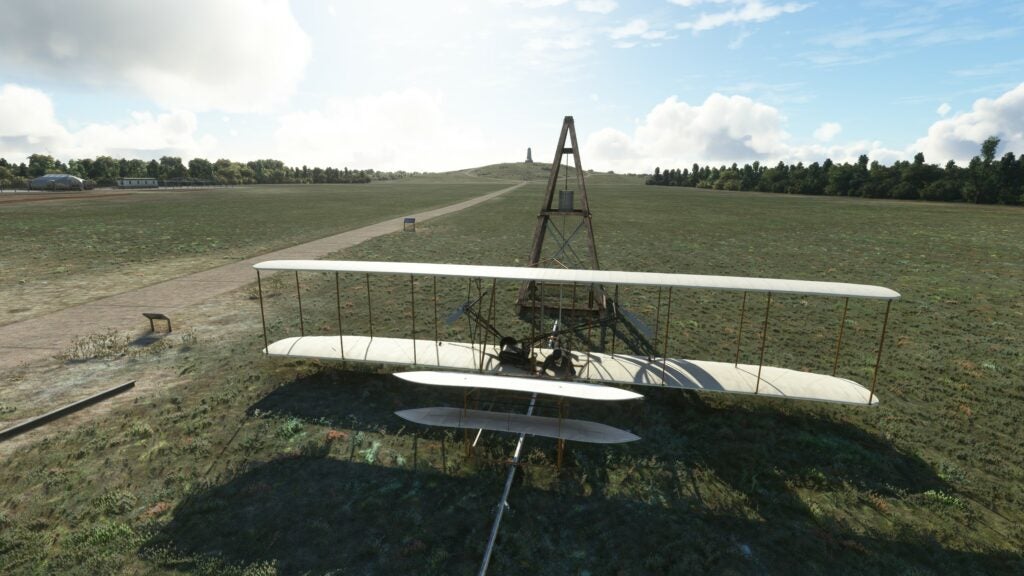

Will 12 hp be enough? The answer is: probably not enough to take off. That’s why the Wrights set up a catapult (below at right). Dropping a weight will pull the aircraft forward at sufficient speed for a good head start. Along with a strong headwind, this might be just enough.

[Courtesy: Patrick Chovanec]

All of the improvements I’ve described up to this point were critical to success. They might have sufficed to get them off the ground and into the record books,  butthey weren’t the basis for the patent the Wrights filed in claiming rights over a truly unique invention. What the Wrights invented—and understood as their real breakthrough—was their method of controlling the aircraft in flight along three axes.

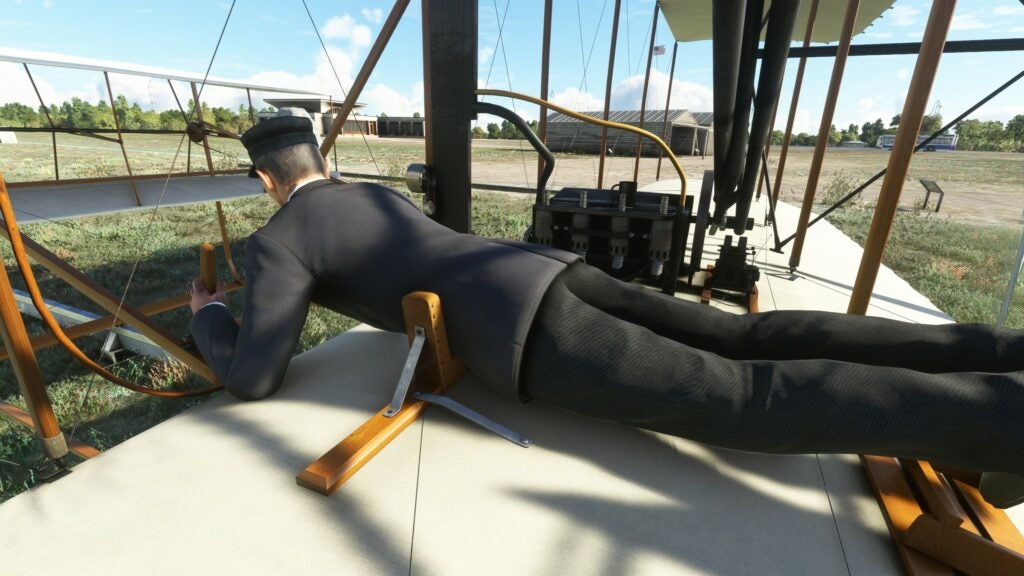

First there is roll, raising one wing and lowering the other, by rotating the airplane around its longitudinal axis running from nose to tail. The Wrights controlled roll by having the pilot swing his hips within a wooden cradle, left or right. This motion pulled wires that twisted or “warped” the outer shape of the wings to create more lift on one side and less on the other.

[Courtesy: Patrick Chovanec]

Today, wing warping has been replaced by ailerons, little hinged surfaces that do the exact same thing. And the hip cradle has been replaced by a stick or yoke that looks something like a steering wheel.

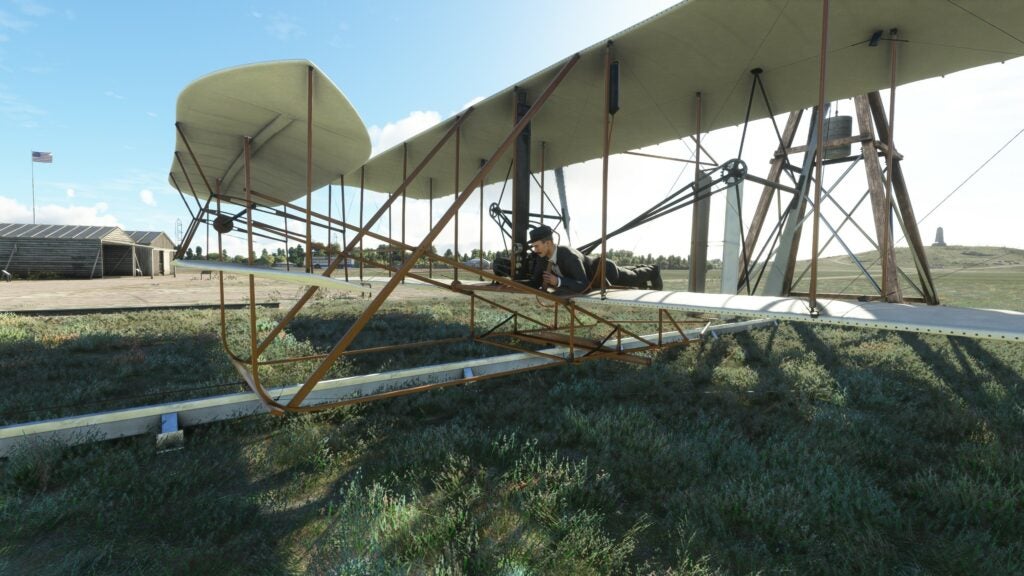

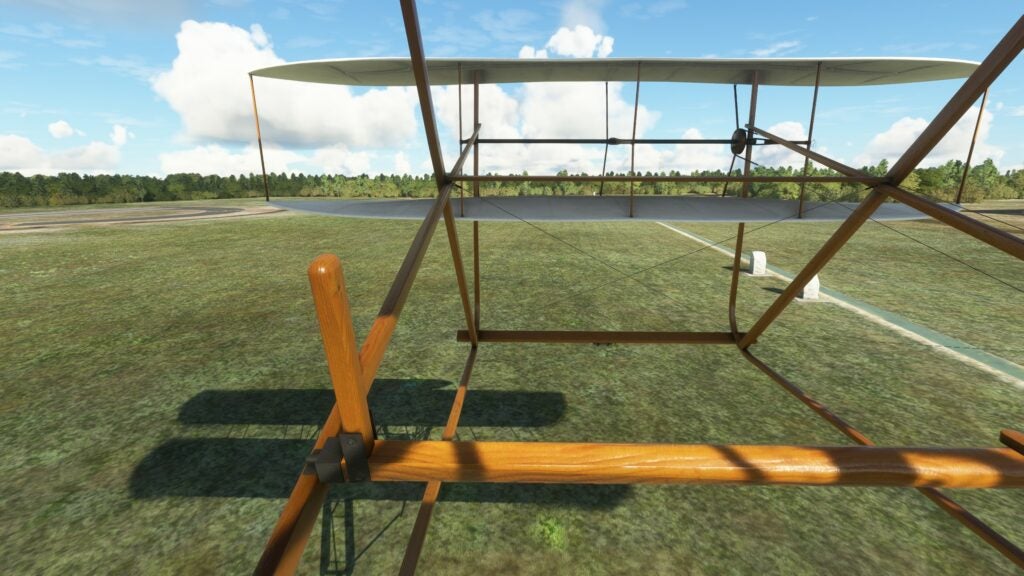

Next there is pitch, rotating the nose and tail vertically up or down around the lateral axis running from wingtip to wingtip. The pilot of the Wright Flyer controlled pitch by manipulating a wooden handle that operated two smaller wings to the front of the aircraft. These “elevators” caused the nose to point up or down.

[Courtesy: Patrick Chovanec]

These days, the elevators have usually been relocated to the tail of the airplane, instead of the front, but perform the exact same task.

Last but not least, there is yaw, the rotation of the nose left or right around the vertical axis running through the aircraft from top to bottom. Control over yaw is important to prevent an airplane—especially one that’s not very streamlined, like the Wright Flyer—from starting to fly sideways. In their glider experiments without a rudder, the Wrights found this to be a major problem.

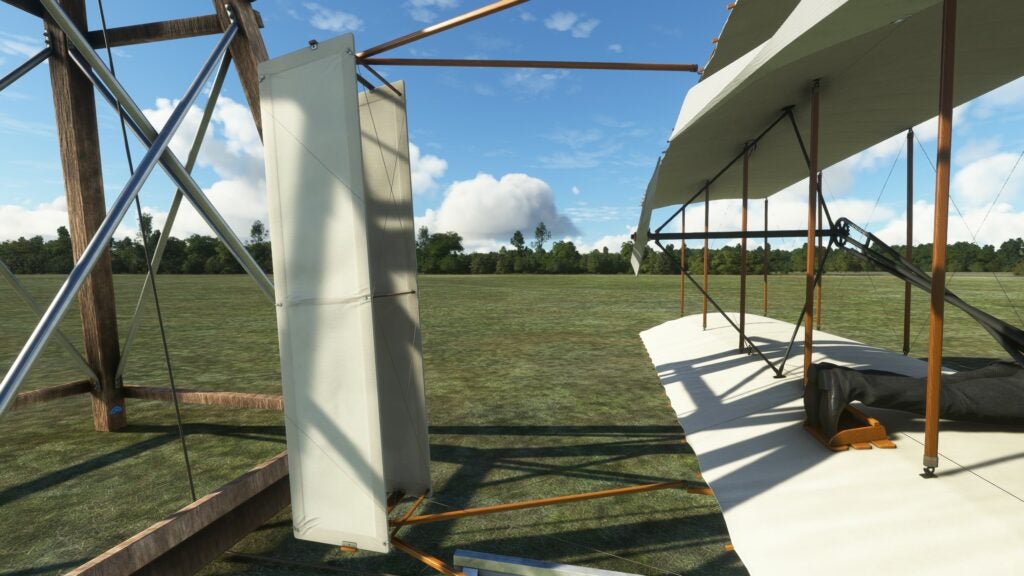

So starting with their 1902 Glider, they installed an upright rudder to the pilot’s rear. It was linked to the same wires that controlled wing warping, via the cradle, to coordinate the two. This helped keep the airplane flying straight. Today, the rudder (or rudders) remains a standard on most airplanes, beside the elevator(s) on the tail.

[Courtesy: Patrick Chovanec]

Control in three axes was the secret sauce. While the Wright Flyer may not look like a modern airplane, it was the same as one in its essential operation. Let’s see whether it does the job!

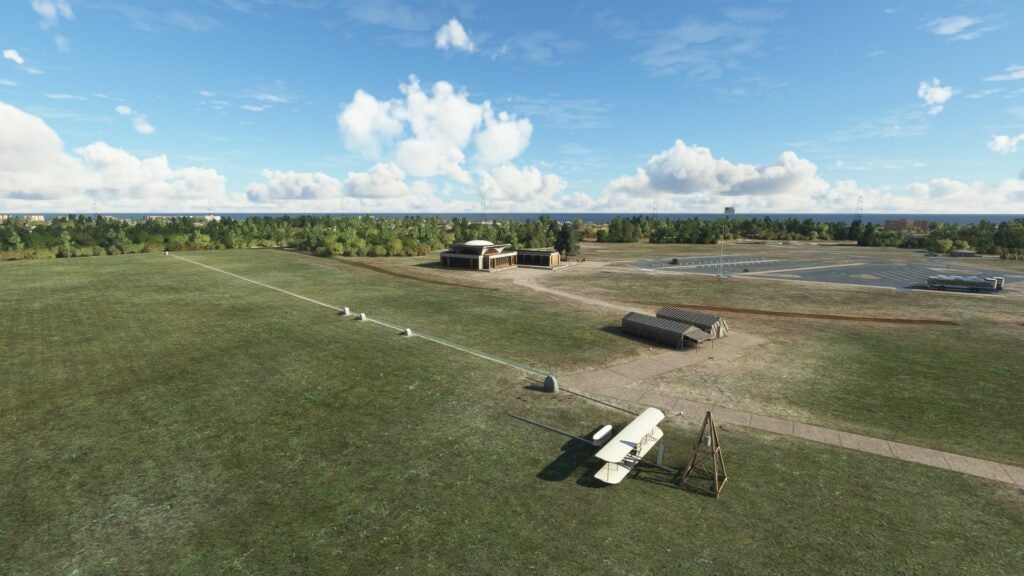

This was a particularly fun sim thread to recreate because, a little more than a year ago, I took my family to Kitty Hawk and we saw this exact site. We saw the wooden workshops where the Wright brothers stored, assembled, and repaired their Flyers, and the markers showing the distances achieved on their first four powered flights. From the photos I’ve seen, it looks like at that time there were just sand dunes in the area, which is now filled in with grass and trees.

[Courtesy: Patrick Chovanec]

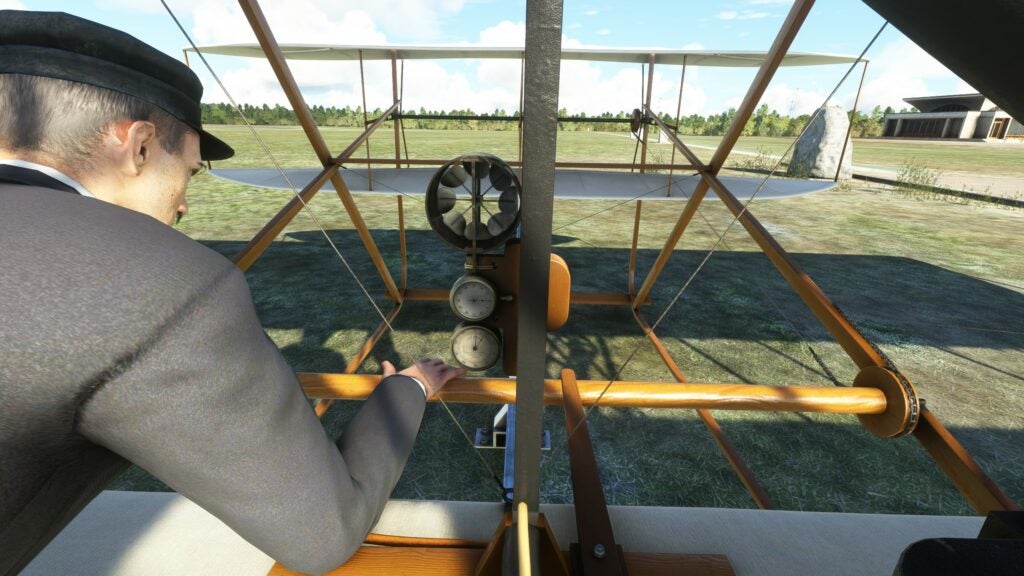

On December 17, 1903, all the pieces were finally in place. With a headwind gusting up to 27 mph and the catapult charged, the Wright brothers were ready to attempt a powered flight. Next to the pilot were just two instruments: a stopwatch (below middle) and a gauge (below bottom) attached to a little windmill (below top) to show distance covered.

[Courtesy: Patrick Chovanec]

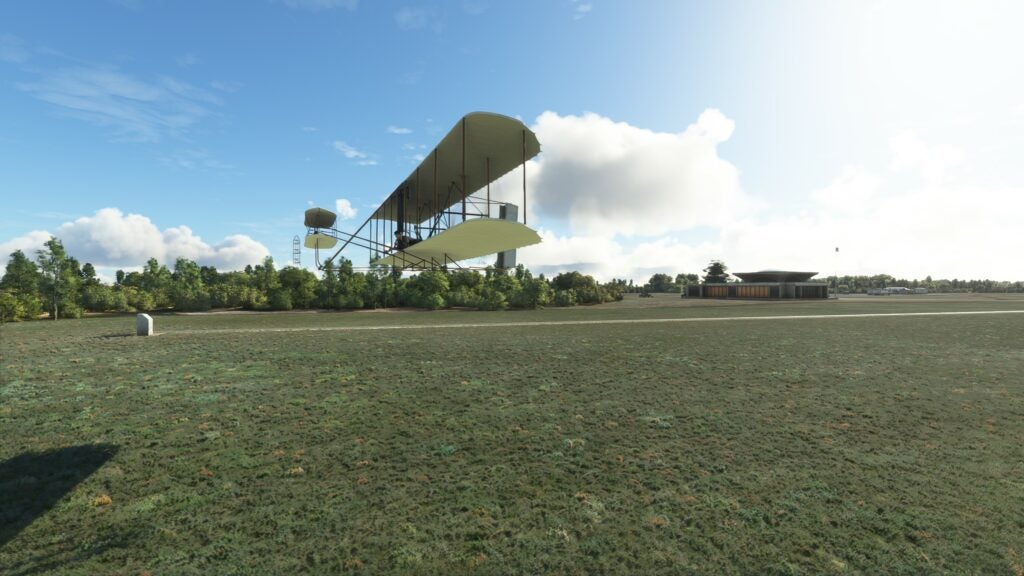

I did several flights and the key is to avoid pitching up too fast, otherwise you’ll lose what little airspeed you have and stall. Keep it low and just a few feet above the ground.

[Courtesy: Patrick Chovanec]

The Wright Flyer was not very stable, requiring attentive control inputs just to remain steady. Weight also becomes a complicating factor when you bank to turn, placing additional load on the wings and raising the stall speed. All I could consistently do with the 1903 Flyer was fly straight ahead.

[Courtesy: Patrick Chovanec]

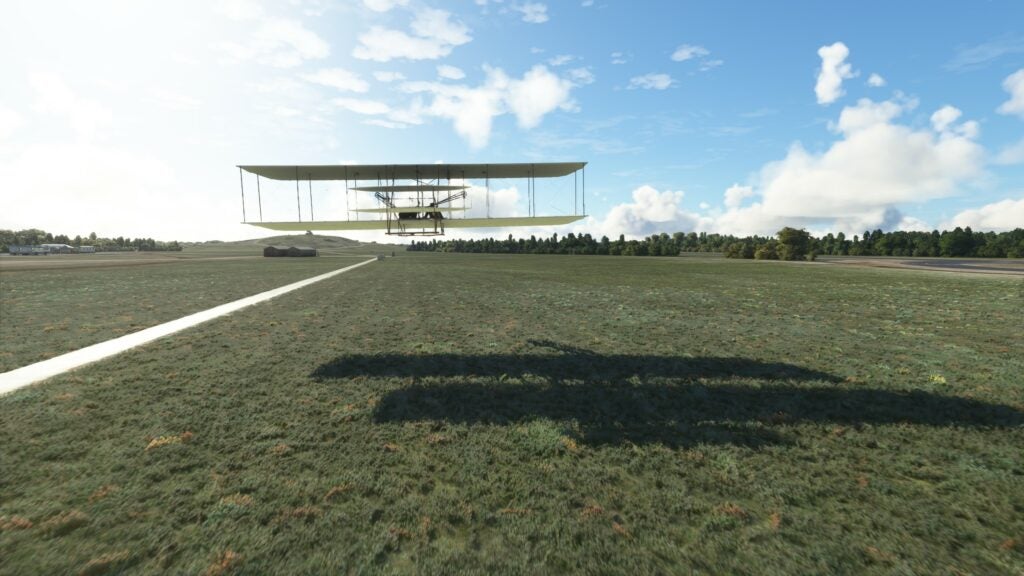

That’s OK, because that’s all the Wright brothers could do on that first day—just fly straight ahead for as long as they could remain aloft. Their first and second flights lasted 12 seconds each and covered 120 feet and 175 feet, respectively. Their third flight lasted 15 seconds for 200 feet, and their fourth went 59 seconds for 852 feet. It looks like I’m going to beat their record here.

[Courtesy: Patrick Chovanec]

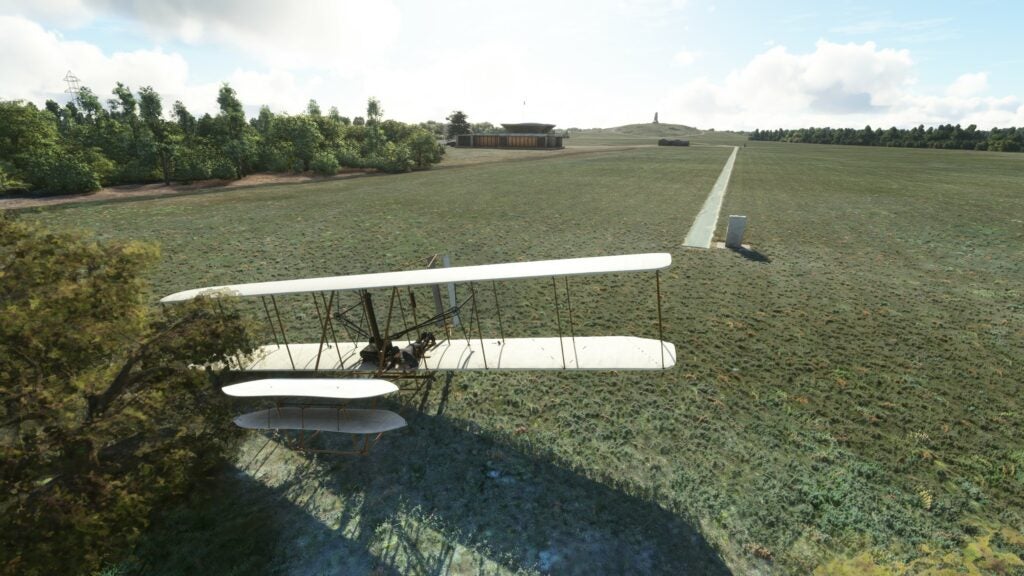

I made the tree line just past the 852-foot marker. I tried repeatedly to fly over the tree line and no can do. The 12 hp engine just isn’t powerful enough to sustain flight past 1,000 feet, much less climb. The same was true for the 1903 Wright Flyer.

[Courtesy: Patrick Chovanec]

Now what happened immediately after the Wrights’ first successful flight is an interesting story. The brothers sent a telegram home to their father, confirming their achievement. But only one local newspaper in Ohio picked up the story, based on their press release. Concerned about securing their patent, the brothers continued their work in secrecy and avoided any public demonstration of what they had accomplished. For many years, people doubted their claim that they had flown at all.

[Courtesy: Patrick Chovanec]

During that time, they upgraded their motor to 15 hp, then 20 hp, and eventually 35 hp, giving them the power they originally lacked to remain in the air longer and maneuver. But in the process, they lost ground to other aviation pioneers, like Glenn Curtiss, who followed the trail and quickly adapted and improved many of the Wright brothers’ innovations. It was Curtiss who performed the first public flight on July 4, 1908, to widespread acclaim. Only afterward, when they toured Europe and demonstrated their Flyer there, did the Wright brothers earn widespread recognition for inventing the flying machine before Curtiss.

The Wrights tried to enforce their patent against Curtiss, claiming rights to any aircraft that used the system of controlling along three axes, which Curtiss argued was too broad to allow for improvements. It was a long and bitter fight, only resolved when the U.S. government forced them to share their patent rights during World War I.

Our family experienced a very enjoyable trip to Kitty Hawk as well, and I took them all hang gliding on the dunes to give them a feel for what the Wright brothers actually experienced there.

[Courtesy: Patrick Chovanec]

I hope you enjoyed this story on the Wright Flyer and that it has shed some light on what makes an airplane an airplane and the true nature of the Wright brothers’ historic accomplishment.

If you’re interested in an enjoyable but informative read about the Wright brothers and the race to be first to fly, I highly recommend Dawn Over Kitty Hawk, a historical novel by Walter Boyne, the former director of the National Air and Space Museum.

If you’d like to see a version of this story with more historical photos and screenshots, you can check out my original post.
