The TBM 850 is equipped with a sophisticated three-display Garmin G1000 avionics system, featuring an oversized MFD that displays detailed moving maps with topographical data, engine schematics, and electronic checklists, controllable via both a dedicated keypad and display bezels.
Its cabin offers versatile configuration options with reconfigurable passenger seats that can fold flat or be removed to accommodate varying passenger and baggage needs, complemented by amenities such as a folding table.

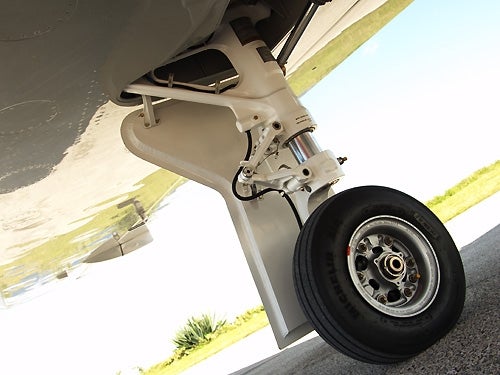

The aircraft design emphasizes performance and safety, incorporating large wing flaps for a low stall speed (just above 61 knots), beefed-up main landing gear for improved durability, a heated engine air inlet to prevent icing, and comprehensive weather awareness through both wingtip-mounted radar and XM Weather.

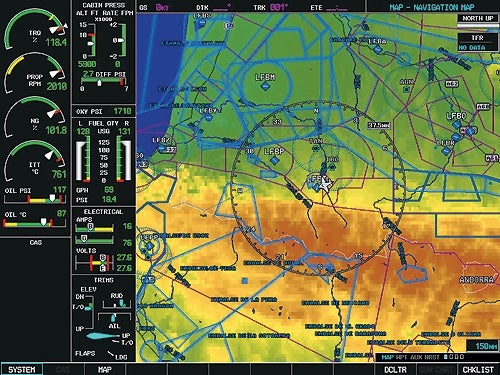

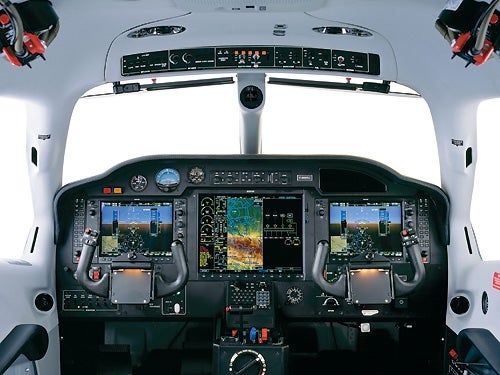

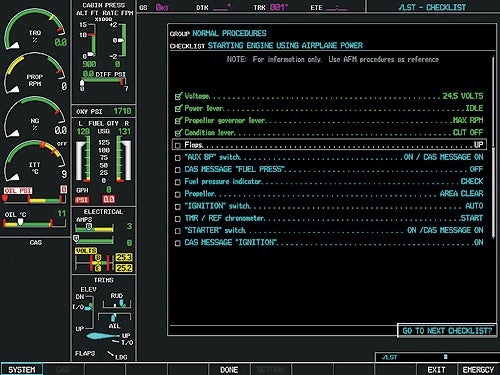

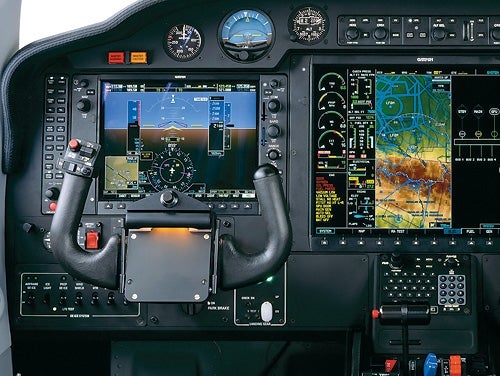

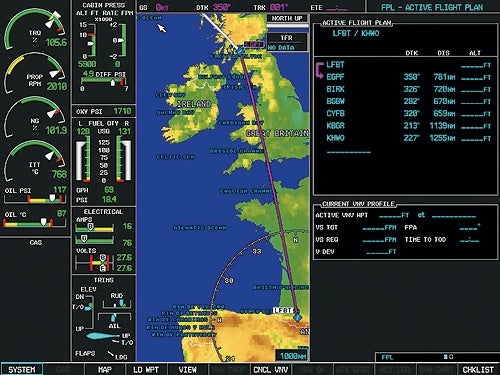

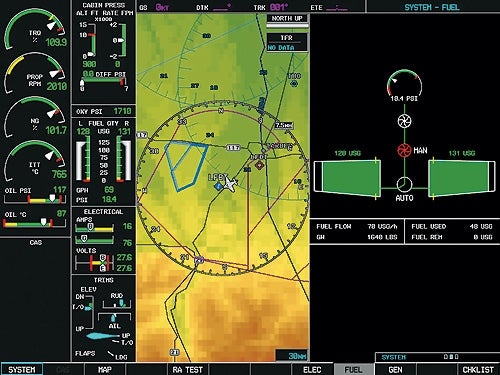

The TBM 850 has a three-display G1000 system with the oversized MFD in the center. It is very similar to the avionics system in Cessna’s light jet Mustang.A keypad mounted just ahead of the throttle can be used to enter data and control other aspects of the G1000 system as well as using the knobs and buttons mounted on the display bezels.The big MFD can be windowed to show engine and other critical data, a moving map and system operation. The fuel system schematic is called up in this photo.The colors on the moving map indicate topographical features with the darker browns and oranges showing higher elevations just as they do on a chart.The map shows a TBM 850 leaving the factory in France headed for the United States. The initial leg crosses the United Kingdom and then it’s on to Iceland or Greenland for fuel.As items are checked off on the electronic checklist they turn green. The active item is highlighted in white.A folding table extends from the right side of the cabin to allow passengers to work or eat while en route.The left rear seat easily folds flat to provide access to the baggage space aft.Looking aft with all four passenger seats in place. Individual seats can be quickly removed to provide more space for people or baggage.The wingtip navigation light and strobe are combined into a single compact unit.Static ports on the fuselage must be kept clean for accurate air data computer performance.The jet fuel can be locked inside the TBM 850 wing tanks.This TBM 850 has the optional forward pilot door.Notice how the wing flaps cover nearly all of the trailing edge. It is this very large flap that helps to keep the TBM 850 stalling speed at just above 61 knots when flying at maximum takeoff weight.The main landing gear was beefed up on the 850 to better withstand rapid taxi turns and less than ideal crosswind landing technique.The engine air inlet below the prop spinner is heated to prevent ice formation.The weather radar is mounted in a pod near the left wingtip. The G1000 avionics system also receives XM Weather via satellite.The ventral fins under the aft fuselage help add directional stability, and also contribute to the TBM 850’s good behavior at the stall.With the cowling and both doors open the TBM 850 offers easy access. Note the N-number. The GC stands for glass cockpit.
