The following information is derived from the FAA’s Service Difficulty Reports and Aviation Maintenance Alerts.
Beechcraft Model F33A Bonanza/IO-520
Cracked Magneto Impulse Coupling
Accident Probes
Aircraft Analysis
Avionics and Gear
Features
Instrument Flying
Learning Experiences
Squawk Box

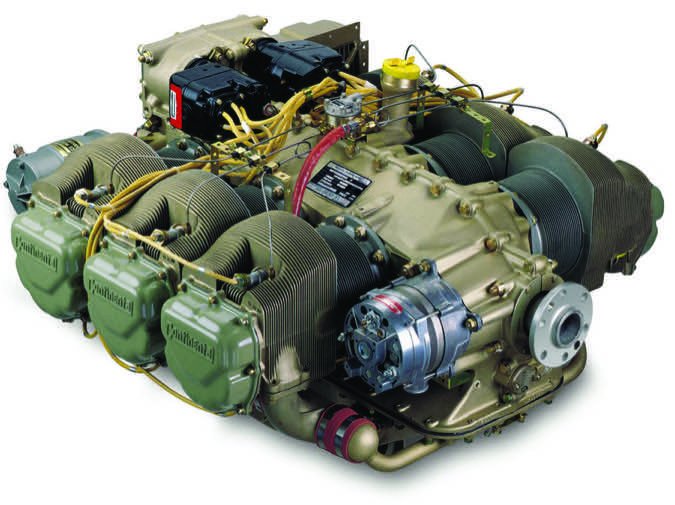

IO-520s
Beechcraft Model F33A Bonanza/IO-520Cracked Magneto Impulse CouplingDuring a 500-hour magneto inspection, the impulse coupling was discovered to have cracks in its flyweight base plate. The cracks were detected using magnetic particle inspection and appear to have originated from the sharp-cornered feature of the base plate that forms the full advance stop. Slick p/n M3050.Part total time: 565.0 hours
Key Takeaways:
- Multiple Service Difficulty Reports detail various critical failures in IO-520 engines, affecting components like magnetos, crankshafts, and cylinder heads.
- Slick p/n M3050 magneto impulse couplings were repeatedly found cracked at their advance stop features during routine 500-hour inspections.
- Other significant issues include a catastrophic crankshaft failure due to main bearing issues and fretting, a starter drive adapter failure leading to oil contamination, and a broken magneto distributor gear associated with detonation.
