When The Earth Moves

Everyone aboard the Beech Model 17 Staggerwing in which I was a passenger had been to the Driggs, Idaho, airport (KDIJ) dozens of times, perhaps even hundreds. Driggs Reed Memorial Airport is one of the more scenic airports in the country, much less Idaho. But as we approached, we could tell something was amiss. The pattern was busier than usual, and we heard a call for Runway 22. All three of us knew with confidence that Driggs single runway is laid out 03-21, but a second and third plane called in approaching the same, seemingly wrong runway.

Mike Hart

Friday, November 18, 2016 at 12:00 AM ET

Verified

Key Takeaways:

Runway numbering changes, driven by shifting magnetic poles, are complex and frequently result in discrepancies between physical markings, NOTAMs, and various navigation data sources like charts, EFBs, and FMS databases.
This inconsistency can create significant confusion and safety risks for pilots, especially at familiar airports or when following specific instructions such as "fly runway heading" which requires precise magnetic alignment.
The FAA acknowledges the challenges in synchronizing these updates across different systems, often relying on NOTAMs to bridge the gap until all procedures and charting are fully revised, highlighting the pilot's critical role in staying informed.

See a mistake? Contact us.

Everyone aboard the Beech Model 17 Staggerwing in which I was a passenger had been to the Driggs, Idaho, airport (KDIJ) dozens of times, perhaps even hundreds. Driggs Reed Memorial Airport is one of the more scenic airports in the country, much less Idaho. But as we approached, we could tell something was amiss. The pattern was busier than usual, and we heard a call for Runway 22. All three of us knew with confidence that Driggs’ single runway is laid out 03-21, but a second and third plane called in approaching the same, seemingly wrong runway. If it had been just one pilot, we would have ignored it and chalked it up to an out-of-towner’s mistake.

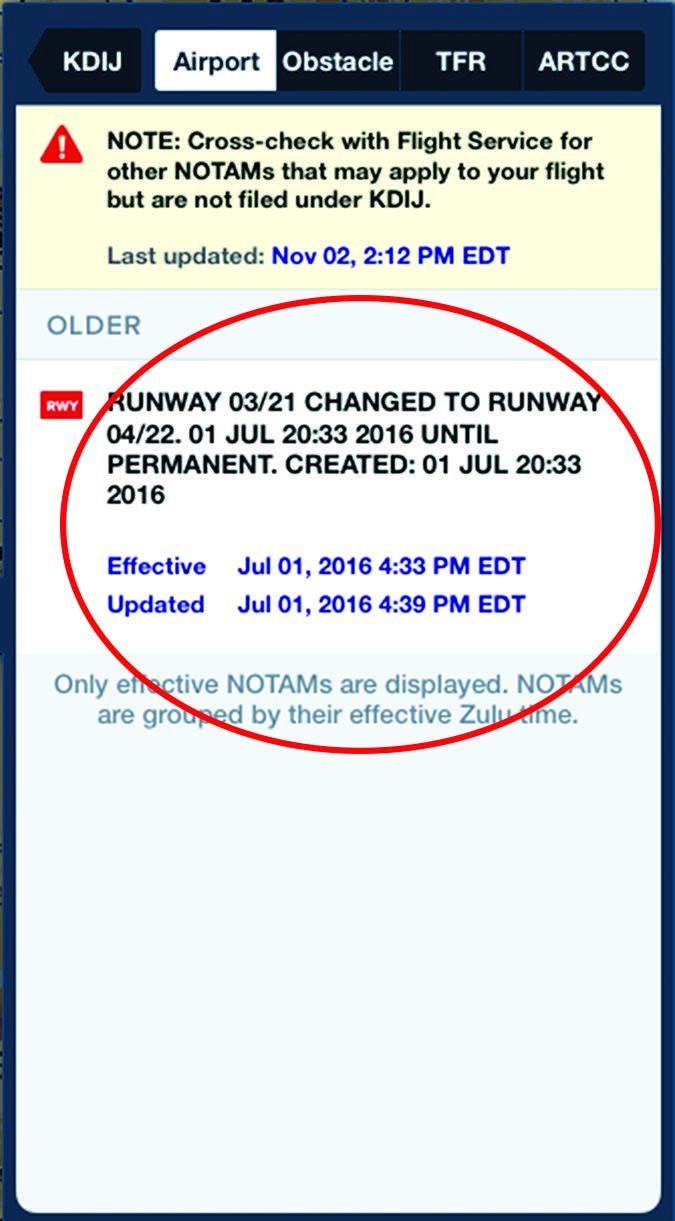

I looked at the electronic flight bag (EFB) app on my recently updated iPad. It showed an extended centerline icon projecting Runway 03-21. When I pulled up the current airport diagram, it also showed Runway 03-21. But then I noticed the Notam icon at the top of the display. A click on the icon showed that Runway 3-21 changed to Runway 4-22 a couple of weeks earlier. Related screenshots are below. Equipped with this new information, our Staggerwing’s pilot turned and made the correct position call for right traffic for the newly designated runway. A plane full of old-timers got schooled by out-of-towners using the correct (albeit new) runway designator.
