Turning Raw NEXRAD into Mosaic

Many pilots understand that the NEXRAD image they see on datalink weather doesnt exactly show where the rain is falling at that moment because of the delay in broadcasting the information up to the satellites and down to the weather receiver.

Gemini Sparkle

Key Takeaways:

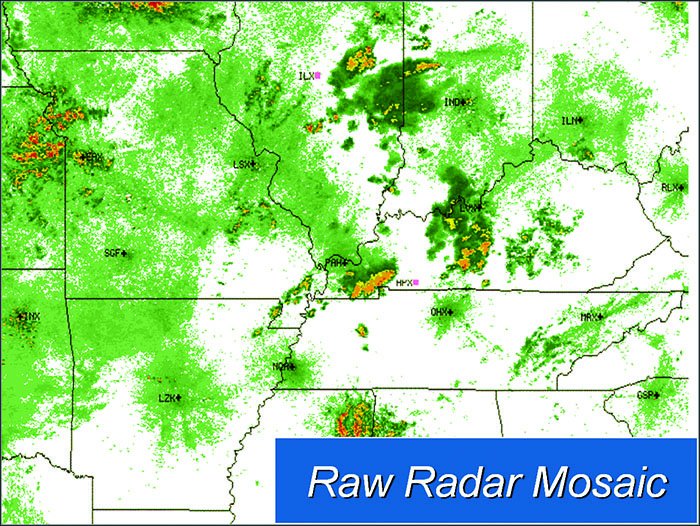

  • NEXRAD images are not real-time due to broadcast delays and are a processed mosaic of data from multiple radar stations, each on its own update cycle.
  • Raw radar data contains significant false returns (ground clutter, birds, etc.) that require extensive automated and human quality control to clean up.
  • This multi-stage processing, while necessary to filter out noise, can sometimes inadvertently remove genuine weather features like gust fronts.
See a mistake? Contact us.

Many pilots understand that the NEXRAD image they see on datalink weather doesn’t exactly show where the rain is falling at that moment because of the delay in broadcasting the information up to the satellites and down to the weather receiver.
