Aspen Avionics Evolution EFD1000

Key Takeaways:

The Aspen EFD1000 is a sophisticated and capable display system, providing clear flight information such as waypoints, glideslope, and localizer indicators.
It features simple connections, a built-in cooling fan, and an integrated battery backup that allows operation for up to half an hour after loss of aircraft power.
The unit is designed for easy installation, fitting into the space of two standard flight instruments, resulting in a clean and integrated panel appearance.

See a mistake? Contact us.

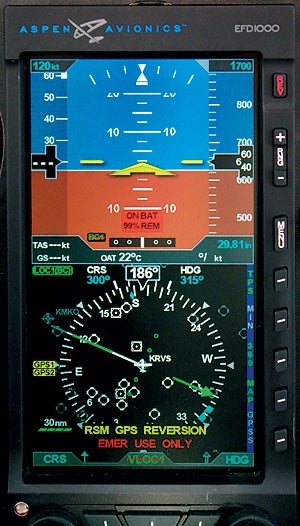

You can see the screen, after we turned off the master, has reverted to backup power mode. It’s now operating under its own power independent of the airplane’s power.

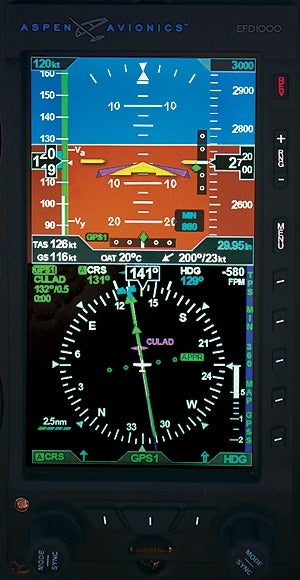

Taken on the RNAV Runway 13 approach to Muskogee (under VFR), this photograph illustrates the sophistication and capability of the Aspen EFD1000 display system. Note the clear and useful presentation of the waypoints on the approach, the easily identifiable vertical (glideslope) and lateral (localizer) indicators on the attitude indicator, and the wealth of basic information on the data bar in the center of the display.

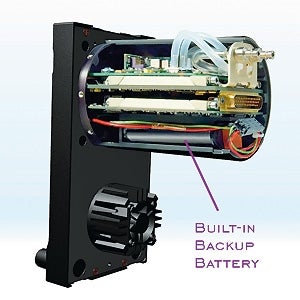

The connections are simple and the unit features its own cooling fan, a must for such a densely packaged system. A battery backup keeps the system working up to half an hour after losing ship’s power.

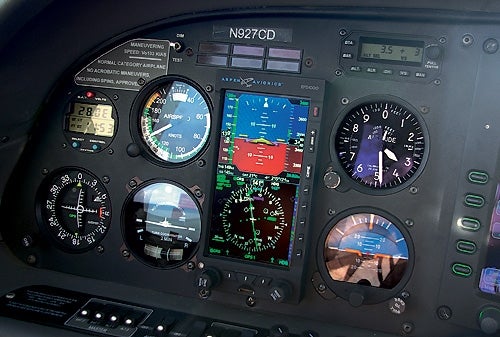

The EFD1000 fits into the hole vacated by the two center flight instruments.

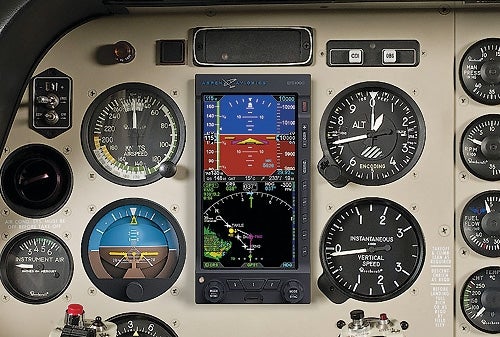

You can see how clean the installation looks in a Bonanza.
