HSI Tech

While the HSI was a game-changer for the instrument pilot by raising the bar on situational awareness, it introduced more avionics complexity, especially when connected to multiple nav sources. In failure mode, and for the pilot who doesnt know how to operate it, the instrument can be a killer. When I was a new avionics technician, Narcos DGO-series HSI system was the ground breaker. But, not all pilots fully understood what an HSI would do, and fewer yet understood how they worked. Thats somewhat true even today.

Key Takeaways:

• Horizontal Situational Indicators (HSIs) combine heading, course deviation (VOR/LOC/GS), and glideslope data into a single, pictorial display, significantly enhancing pilot situational awareness and simplifying navigation.

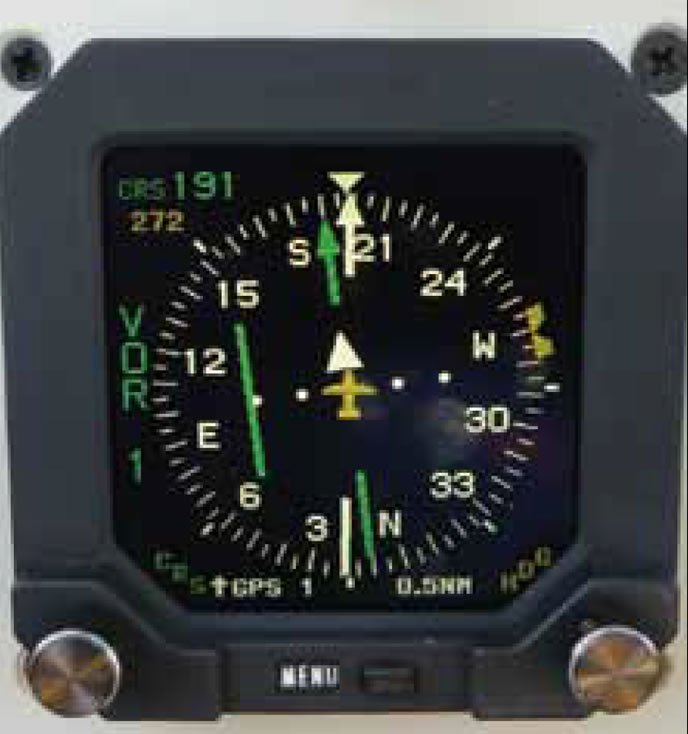

• HSIs have evolved from complex mechanical, gyro-driven systems to modern electronic displays (EHSIs) and fully integrated Primary Flight Displays (PFDs) that leverage solid-state technology (AHRS/magnetometers).
• Modern PFD-integrated EHSIs offer advanced capabilities like multi-source navigation display, ground track indication, and overlay of weather/traffic, improving pilot workload and comprehensive situational awareness.
• Despite their advantages, the complexity of HSIs and their various operational and failure modes necessitate thorough pilot understanding to ensure safe and effective use, particularly when integrated with autopilots.
