Using The Red Knob To Manage Piston Engines

Saturday, June 03, 2023 at 08:46 PM ET

Verified

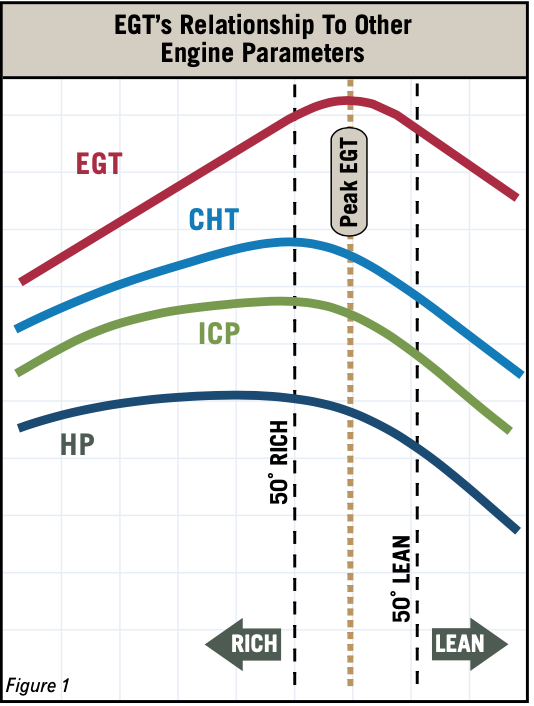

< The chart at left can best be described as a graphical representation of what happens to engine-condition variables as we manipulate the mixture control. Changing the mixture by increasing or decreasing the amount of fuel flowing to the engine typically is referenced by how far rich of peak (ROP) or lean of peak (LOP) EGT the setting is, in Fahrenheit degrees. The idea is to place the mixture control so that the mixture is ROP or LOP enough that no damage occurs, that CHTs remain relatively cool and the engine produces the power we require. It’s important to remember that this chart ignores other variables, like rpm or manifold pressure, and focuses only on fuel flow as it relates to peak EGT. Figure 1

Key Takeaways:

Modern piston engine management requires a multi-cylinder monitor for EGT and CHT to properly adjust the air/fuel mixture, ensuring engine longevity and fuel efficiency, countering common incorrect leaning practices.
Pilots should avoid the "Red Box"—a high-stress operating condition at high power settings (above 65%) with specific rich-of-peak mixtures that cause peak CHT/ICP—by operating well rich of peak, reducing power, or preferably, operating lean of peak (LOP).
Lean of Peak (LOP) operation is the advocated modern method for cruise flight, reducing fuel consumption, increasing range, minimizing engine stress, and maintaining cooler cylinder head temperatures (ideally below 400°F) for enhanced engine protection.

See a mistake? Contact us.

While conducting flight reviews for two decades, I’ve noted a subset of informed pilots employing up-to-date concepts to properly manage the air/fuel mixture entering their piston engine. Other pilots—probably because they were initially trained that way—leaned to peak exhaust gas temperature (EGT), no matter the engine power setting, and then enrichened it by 50 degrees F. Others merely set cruise power and pulled back the mixture about an inch and left it there. And, of course, another subset refused to lean the mixture at all, sometimes stating it was “too complicated.”

Except for the first group of pilots, the rest ignore that properly managing the engine’s mixture can limit cylinder head temperatures (CHTs), has vital implications for fuel economy and engine longevity. The trick is understanding that a full-rich mixture may be most appropriate in some operations and lean of peak (LOP) EGT may be best in others.
