AvMap's Ultra Enters the Portable EFIS Fray

AvMap’s Ultra Enters the Portable EFIS Fray

Mark Phelps

Thursday, September 12, 2013 at 08:42 PM ET

Verified

** Ultra EFIS**

Key Takeaways:

The AvMap Ultra EFIS is a new $1,200 non-TSO'd panel-mount instrument available for the experimental and LSA aircraft market.
It is a tiny (3.5-inch, 5.1-ounce) yet capable display offering full ADAHRS, GPS navigation, and primary flight display functionality.
The instrument features a sunlight-readable display and can be installed standalone or paired with AvMap's 7-inch EKP V navigator.

See a mistake? Contact us.

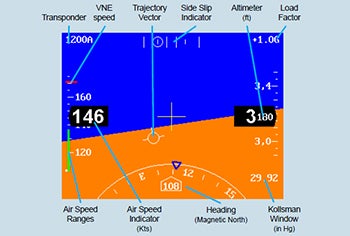

AvMap’s $1,200 Ultra electronic flight information system (EFIS) is now available for sale. This is a non-TSO’d panel-mount instrument for the experimental and LSA market. It cannot be installed legally in a certified airplane. AvMap’s Ultra competes with other 3.5-inch CRT displays such as the Dynon D6 and D10.

Introduced in August at EAA AirVenture, the tiny, lightweight display packs a lot of capability into its two-inch depth. At 5.1-ounces, the Ultra is a fraction of the weight of competing instruments, according to AvMap. The 3.5-inch standalone instrument can be mated to a GPS receiver (included) and also connected to the aircraft pitot static system for full ADAHRS capability.
